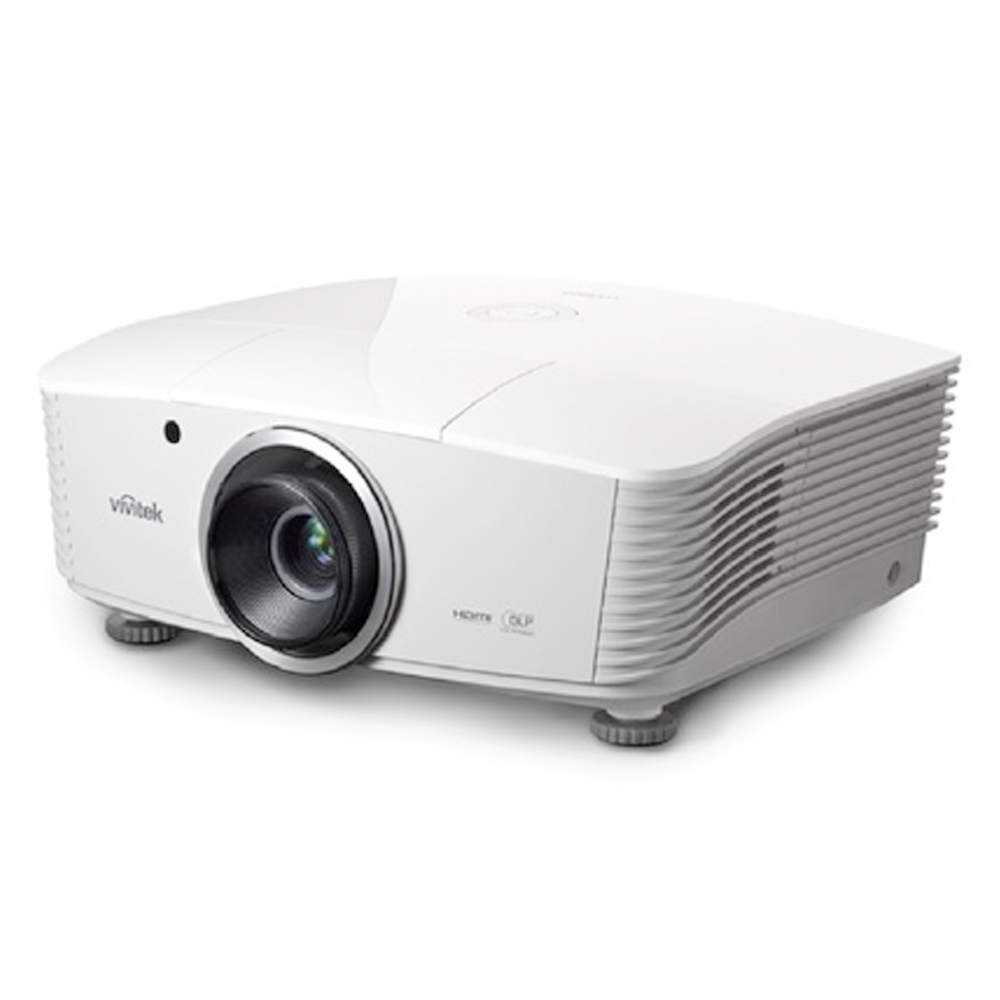

VIVITEK DX5630

VIVITEK DX5630 - High brightness XGA projector with full connectivity and audio

• DLP and BrilliantColorTM technologies by Texas Instruments
• Up to 7,800 ANSI lumens with a 2,000:1 contrast ratio
• Native XGA resolution with a maximum WUXGA resolution
• Manual zoom and focus for easy adjustment and positioning flexibility
• Centered lens for easy installation
• Horizontal and vertical lens shift (manual) for greater installation convenience and flexibility
• Distorted and trapezoid image issues are easily corrected with H/V keystone, and 4-corner adjustment
• Full suite of display connectivity inputs and outputs including: HDMI v1.4b, DVI-D, Composite Video, S-Video, Component (5 BNC) (RGBHV), VGA-In, VGA-Out
• 3D compatibility with DLP® Link™ and HDMI 1.4 Blu-Ray technology support
• 3D sync port for compatibility with IR (infrared) 3D passive synchronization protocol
• RS-232c/RJ45 ready for integration and system automation
• Crestron® RoomView™ integration for network monitoring and management
• Seven (7) interchangeable lens options with quick touch lens release design for easy lens installation/removal
• Anti-theft security features include: Kensington® security slot, and security bar

Specifications of VIVITEK DX5630

• Display Type:  Single Chip 0.7" DLP Technology by TI
• Brightness: 7,800 ANSI Lumens
• Native Resolution: XGA (1024x768)
• Maximum Resolution: WUXGA (1920 x 1200) @60Hz
• Contrast Ratio: 2,000:1
• Lamp Life/Type: 1,000/1,200 hours (Normal/Eco Mode), 430W/320W
• Throw Ratio* 1.6 – 2.0:1
• Image Size (Diagonal)* 36.1" - 300" (based on VL906G/LNS-5SZ12)
• Projection Distance* 1.5m - 10m (4.9ft - 33ft)
• Zoom Ratio* 1.25x
• Aspect Ratio: 4:3
• Keystone Correction: Vertical ±30°, Horizontal ±30°
• Horizontal Frequency: 15, 31 - 91.4Hz
• Vertical Scan Rate: 24 - 30Hz, 47 - 120Hz
• 3D Yes (DLP® Link™, HDMI 1.4 (Blu-Ray 3D)
• Speaker: 3W (x1)
• Lens Shift Range*: Vertical: -10% - +50%, Horizontal: -5% - +5%
• Computer Compatibility: VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA@60hz, Mac
• Video Compatibility:: SDTV (480i, 576i) / EDTV (480p, 576p) / HDTV (720p, 1080i, 1080p), NTSC (M, 3.58/4.43 MHz), PAL (B,D,G,H,I,M,N) SECAM (B,D,G,K,K1,L)

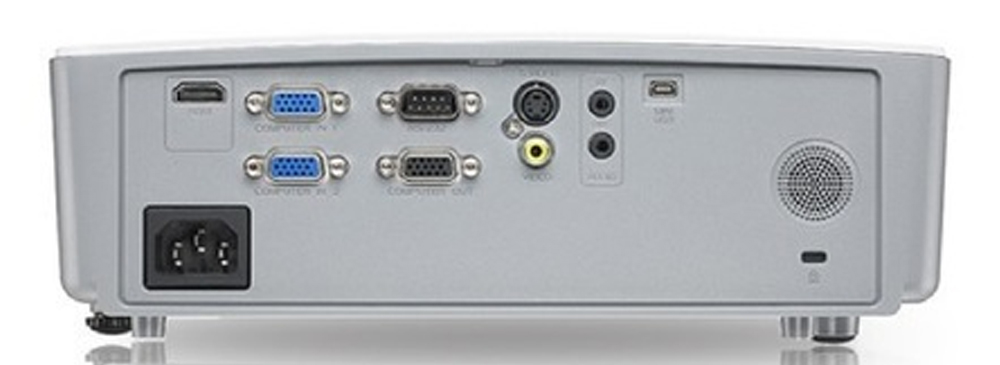

• I/O Connection Ports: HDMI v1.4b (x2), DVI-D, Composite Video, S-Video, Component (5 BNC) (RGBHV), VGA-In (x2), AudioIn RCA (L/R), Audio-In (Mini-Jack)(x2), Audio-Out (Mini-Jack), VGA-Out, 3D Sync-Out, USB Type A Power (5V/1.5A), RJ45, 12V Trigger, RS-232-In, Wired Remote-In, USB (Service)
• Dimensions (WxDxH): 431x345x181m
• Weight: 8.8kg (19.4lbs)
• Noise Level: 43dB/38dB (Normal/Eco. Mode)
• Power Supply: AC 100-240V, 50/60Hz
• Power Consumption:
• 540W (Normal Mode)
• 460W (Eco. Mode)
• Standby Mode)
