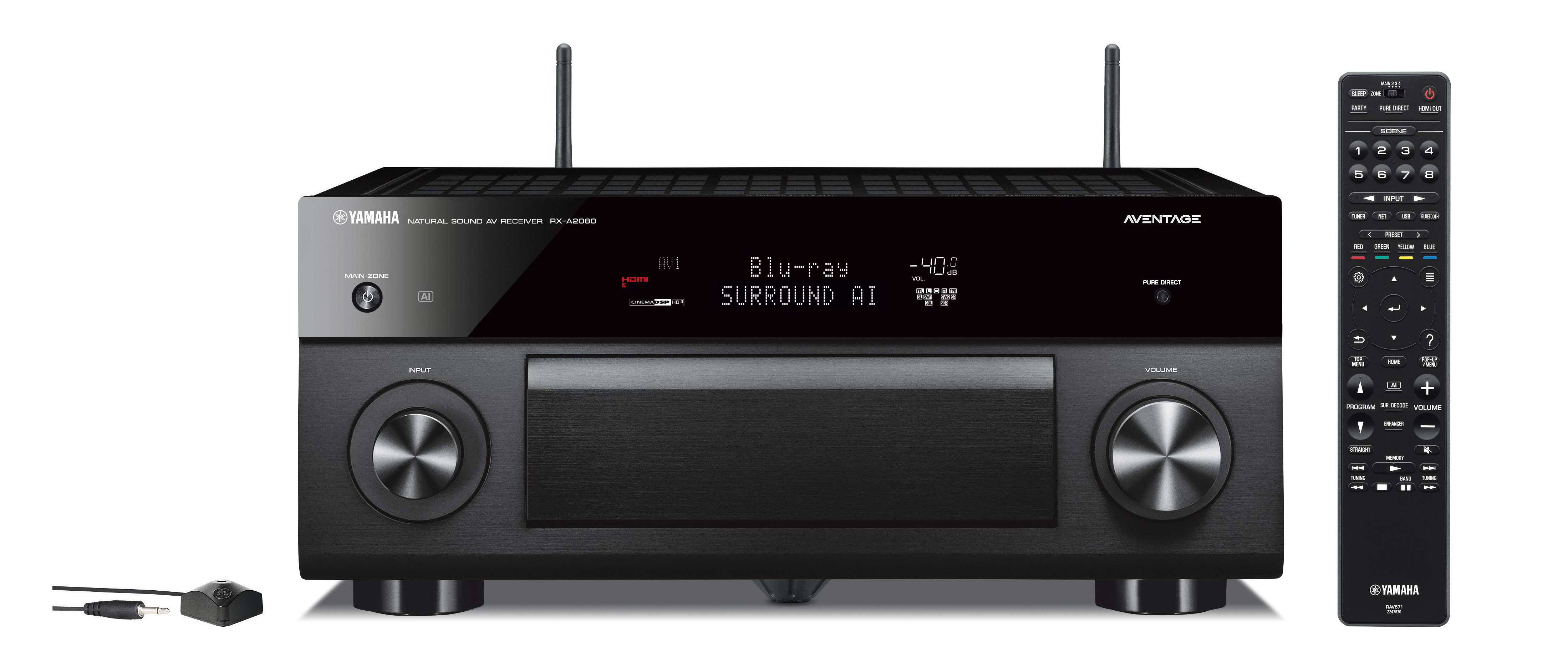

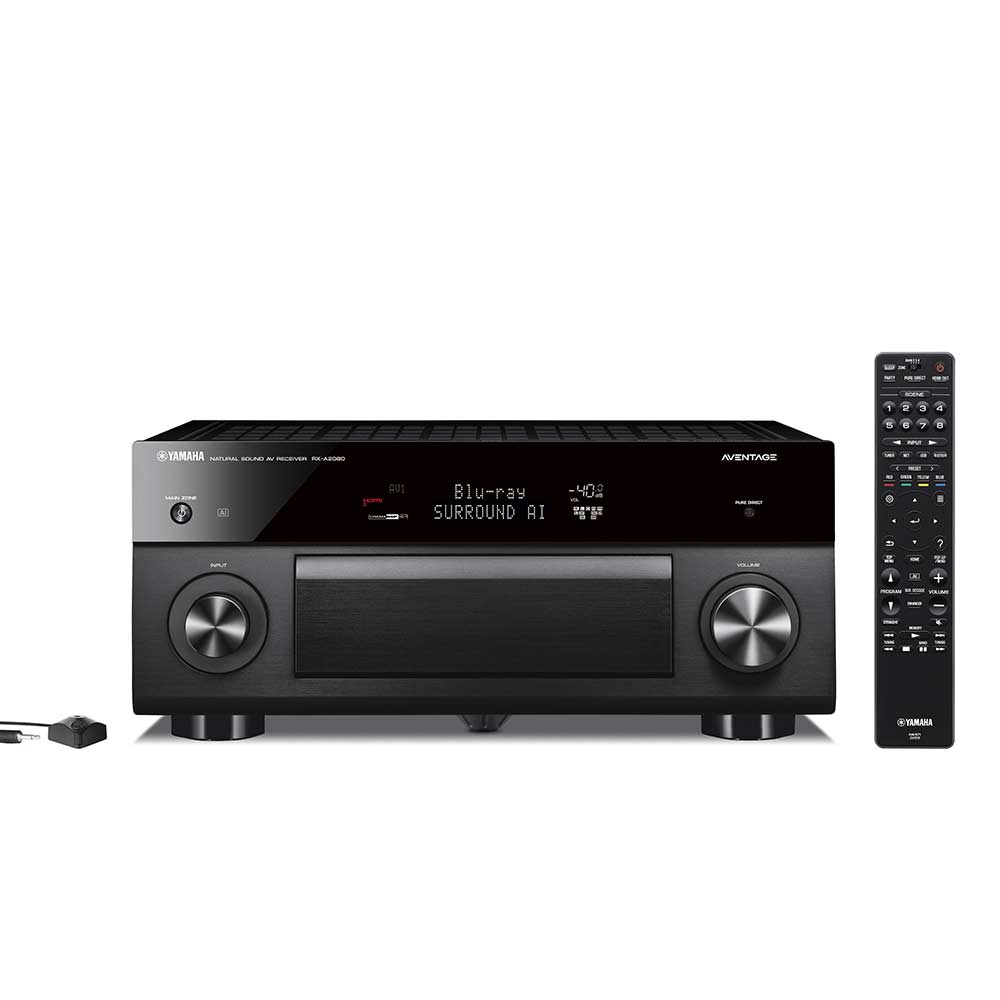

YAMAHA RX A2080

Unbridled Performance and Function. This 9.2-channel AV receiver harnesses dual ESS SABRE™ DACs, seven HDMI inputs, three HDMI outputs, Dolby Atmos® and DTS:X™, Multi-Zone functionality, Phono input, Wi-Fi®, YPAO™ with Precision EQ and much more.

• 9.2-ch Dolby Atmos, DTS:X (7.2.2-ch or 5.2.4-ch) and CINEMA DSP HD3 with Zone 2/3/4
• Wi-Fi, Bluetooth®, AirPlay®, Spotify Connect and MusicCast multi-room
• New Surround:AI™ technology automatically optimizes the sound in real-time
• 4K Ultra HD support, HDR10, Dolby Vision™, Hybrid Log-Gamma and BT.2020
• HDMI with HDCP 2.2 (7 in/3 out)
• Dual ESS SABRE ES9007S Premier Audio DACs for high performance conversion
• Pandora®, Spotify, SiriusXM Internet Radio, TIDAL, Deezer, Napster and more
• YPAO R.S.C., multipoint, 3D and precision EQ
• Voice control using your Alexa device like Echo or Echo Dot
• Phono input

General features of the YAMAHA RX A2080 . amp

Amply Yamaha RX A2080 is an amplifier with a design that combines classic and modern features, with a compact size. The front of the amp is made of elegant aluminum, equipped with "ART Wedge" technology. Amplifier uses new AI surround sound technology that analyzes the characteristics of the source sound, equalizes channels in real time, and then adjusts to enhance the soundstage, making conversations easier to hear. in noisy situations.

Amply Yamaha RX A2080 for connecting the receiver to new wireless speakers from Yamaha because of the MusicCast Surround feature. Simply connect all of your MusicCast devices to a single network to stream music to different rooms in the house. The amplifier supports DTS-X and Dolby Atmos playback with CINEMA DSP HD3, taking the surround sound experience to the next level. For incredible signal and noise and 120dB wide range thanks to SABER 90007S cuea ESS Technology premium audio codec. Allows simultaneous connection of TVs, LCD projectors thanks to 3 HDMI outputs.

See more at: https://www.saigonhd.com/yamaha-rx-a2080

AVENTAGE Advantage - Overview

Craftsmanship in engineering design. The AVENTAGE line of high-performance AV receivers is based on the audio design concept of providing a massive, full-bodied sound for movie sound effects and the accurate reproduction of music sources. By expertly harmonizing traditional and advanced technologies, every factor that affects sound quality, from materials and parts to construction, layout, vibration damping (unique foot) and “fine-tuning” the sound, is handled with no other thought than to achieve the best possible audio quality. As a result, every AVENTAGE model has the ability to reproduce the most subtle details of high-definition sound, so that listeners can enjoy a truly high-class sound studio experience at home.

 AVENTAGE – Total Purity Concept

Enjoy fine sound quality. The Total Purity Concept, which Yamaha has been cultivating for many years, encompasses high drive amp technology, high purity preamplification, anti-vibration technology and independent pure power supplies. All models have fully discrete power amplifiers that help minimize distortion. They also adopt pure independent power supplies, allowing dedicated power supplies for the analog and digital circuitry to prevent digital noise from affecting analog circuitry. The anti-vibration heat sinks are designed to suppress vibration from transistors and sound pressure. Independent power supplies for the DACs are designed to further eliminate noise on certain models. Down to every detail, these AV receivers are designed with full emphasis on the highest possible sound quality.

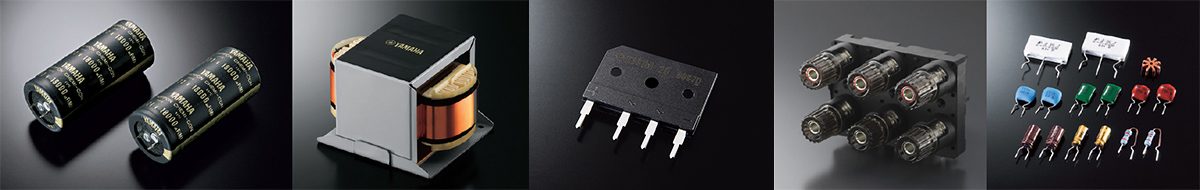

AVENTAGE – High Quality Parts

The whole is greater than the sum. Every single part in an AV receiver affects the sound quality. For AVENTAGE models, extra time is taken to find (or develop) the exact parts needed to achieve the highest performance possible. Sound technicians go through a testing process to, in effect, "tune" the receiver's sound.

AVENTAGE – Anti-Resonance Technology

A firm foundation. The Anti-Resonance Technology Wedge is a fifth foot in the center of the unit. It dampens vibrations from the power transformer, power transistors and heat sinks, as well as vibrations that might be caused by the sound from the speakers.

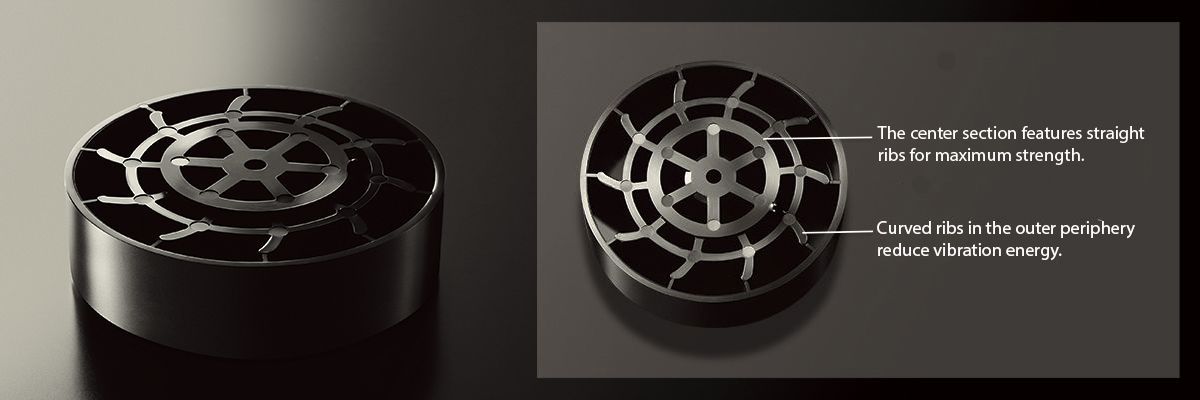

AVENTAGE – Advanced Foundational Design

A foot fetish. The feet of the receiver feature a newly designed, high-density structure which utilizes two different kinds of interior ribs — straight and curved — to enhance strength and damping performance. Installation stability is improved and chassis resonance is dispersed, effectively eliminating external vibration. The low-range response is enhanced, while resonance peaks in the mid- and high-range are reduced, providing dynamic sound and accurate reproduction.

AVENTAGE – Aluminum Front Panel

Shielded from noise. All of the AVENTAGE components feature the same sleek, clean design, with an elegant aluminum front panel and silky touch volume/selector knobs. The aluminum front panel is used to effectively shield sensitive circuitry from external noise and electronic radiation generated by dimmer switches, fluorescent lighting, video monitors and so on. This ensures optimum sonic performance in the widest range of installation environments.

AVENTAGE – Symmetrical Power Amplifier

Designed to the details. The interior of the unit has been precisely planned, circuit-routed and built so that the left and right channels are physically and electrically isolated. This naturally maximizes channel separation but also greatly improves signal to noise ratio and also helps to achieve a wide open sound stage for a superior receiver.

AVENTAGE – H-shaped Frame

Reinforced for rigidity. The interior of the receiver is reinforced with cross members in an H shape to provide an extremely rigid and stable frame. This reduces chassis vibration to virtually zero even during high volume output (seemingly minor vibrations can affect the sound), maintaining the highest audio quality.

AVENTAGE – ESS SABRE ES9007S Premier DACs

More signal less noise. Incorporating dual SABRE ES9007S Premier Audio DACs from ESS Technology to achieve an exceptionally good signal-to-noise ratio and up to 120 dB of dynamic range, this AV receiver produces professional quality digital audio.

AVENTAGE – Surround:AI

Intelligent Surround. This AI technology built into the DSP analyzes the scene of your entertainment content and creates an optimal surround effect to reproduce it with the greatest effect. In real time, this AI instantaneously analyzes scenes by focusing on distinct sound elements such as dialogue, background music, ambient sounds and sound effects, and automatically optimizes the surround effect. The effect is a compelling sense of realism beyond conventional sound field effects, giving you the best of every scene in an entertainment experience.

4K Ultra HD HDMI Support

Providing complete compatibility with the latest HDMI standards, this AV receiver delivers transmission of 4K video at 60 frames/second pass-through. It also supports HDR (high dynamic range) video including Dolby Vision and Hybrid Log-Gamma. This provides incredible contrast, smooth tone and rich, bright colors—giving you full, high-definition enjoyment with an exceptionally realistic and natural picture quality.

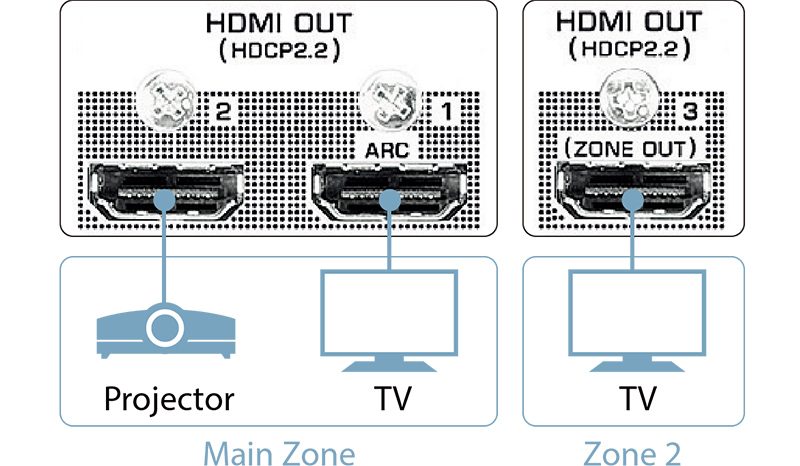

Three HDMI Outputs

With three HDMI output terminals, you can simultaneously connect to the TV, LCD projector and other devices to watch two separate video sources at the same time. Or broadcast the same video source like a ball game across all outputs.

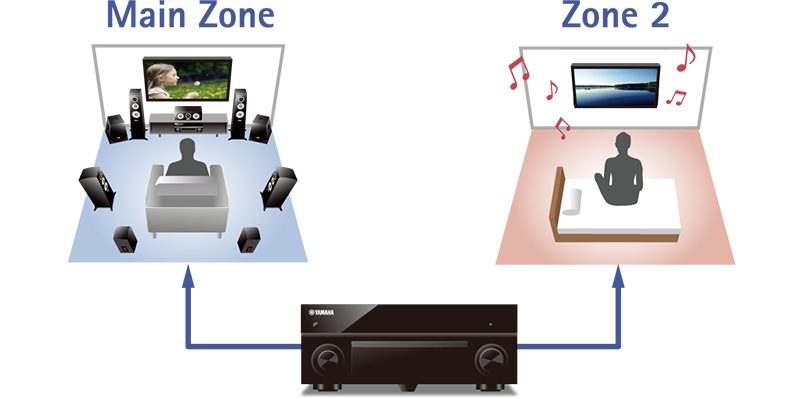

HDMI Zone Switching

You can transmit video or audio content to a TV or home theater system in another room (Zone 2) via HDMI. This lets you enjoy viewing and listening to the same main room content (where the AV receiver is installed), or even different content.

>>> See more information at SAIGON HD

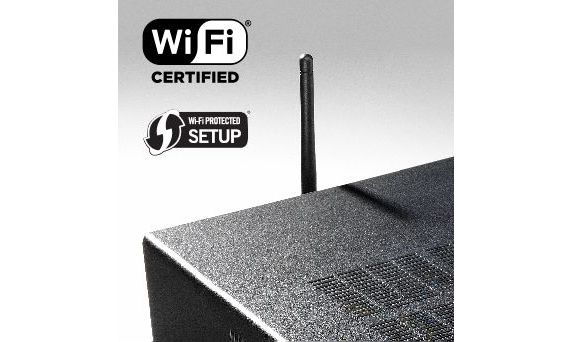

Wi-Fi, Bluetooth, and AirPlay Compatible

Built-in Wi-Fi allows for a connection with your wireless router, greatly simplifying system connections for music streaming or enjoying networked audio (PC/NAS). Bluetooth connectivity is also included for streaming from Bluetooth devices to your receiver.

>>> See more information about the ampli

Dolby Atmos and DTS:X

Compatibility with these amazing sound technologies creates an extraordinary experience. They deliver breathtakingly rich and realistic surround sound, positioning and moving individual sounds to any virtual point in your room, including objects moving overhead. Experience the overwhelming realistic movement and immersion in videos — right in your home.

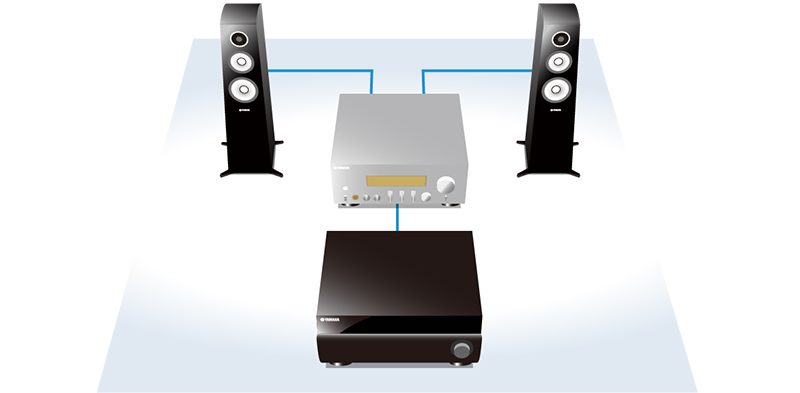

7.2-Channel Pre-outs

Add an external power amplifier (pre-main amplifier) to this AV receiver to improve and enhance the sound of your speakers. By using a power amplifier to drive the important front channel in home theater, this added power supports your system with an emphasis on sound quality.

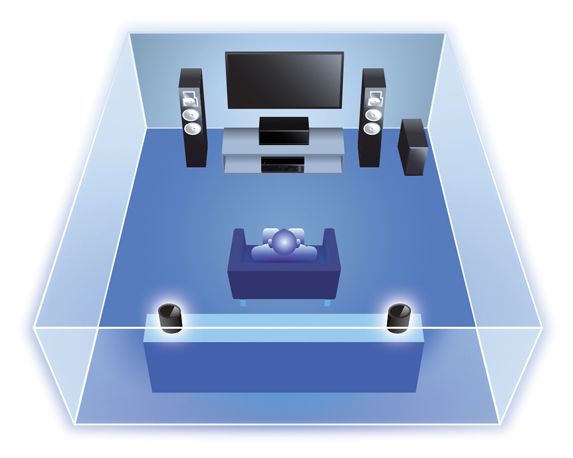

Wireless Surround Speakers

Combine this AV receiver with the upcoming MusicCast 50 or MusicCast 20 wireless speakers and enjoy the convenience of creating a home theater with wireless surround speakers in 5.1-ch. Get stunningly realistic sound with a clean, clutter-free setup and turn your current living room into an entertainment environment where you can fully enjoy movies and music.

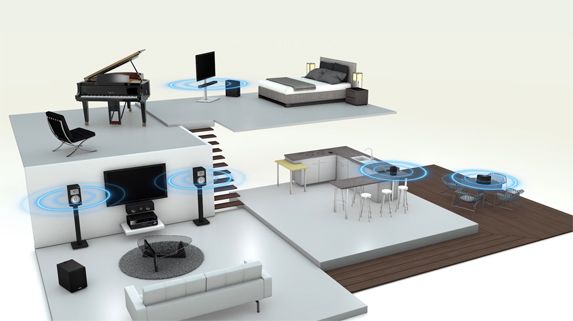

MusicCast

Start with this AV receiver in your home theater and expand to other rooms over time with MusicCast speakers, sound bars or Hi-Fi gear. Stream your music and TV sound everywhere using your existing Wi-Fi network. With MusicCast, the system grows with you, and there’s no need to run wires through walls.

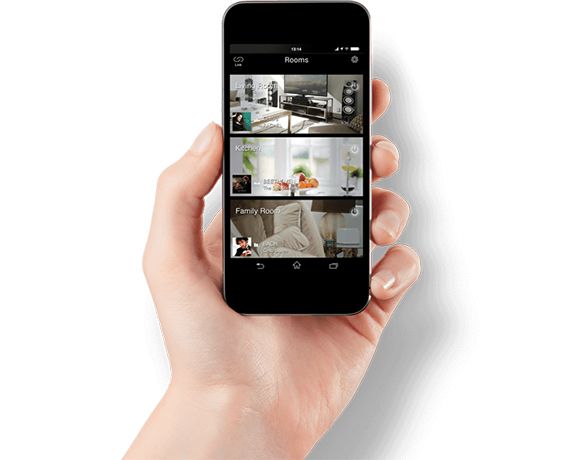

MusicCast App

The free MusicCast app puts control of your AV receiver in the palm of your hand. Access your sources and streaming services, adjust volume and sound settings, and link with other MusicCast devices for simultaneous playback throughout your home.

Learn more about the MusicCast Controller app

Voice Control

"Alexa, turn up the volume." With Alexa voice control integration, all you have to do is ask. Use any Alexa-enabled device, such as an Echo or Echo Dot, to control either the AV receiver by itself or multiple MusicCast devices throughout your home.

* Availability of voice control via Amazon Alexa varies by region.

Streaming Services

Explore a world of music with built-in music streaming services. Syncing your playlists and likes from your smart device to the receiver and discovering new music becomes even easier with your Receiver.

Sound Optimized

YPAO™ - R.S.C. (Reflected Sound Control with 3D, Multi-Point Measurement and Precision EQ)

YPAO-R.S.C. (Reflected Sound Control) analyzes room acoustics and measures various speaker characteristics, then calibrates audio parameters to achieve optimum sound at any of eight listening positions. It uses precision EQ calculation to achieve the most natural room acoustics possible and Reflected Sound Control to correct early reflections for studio-quality sound. It also provides DSP Effect Normalization, which varies the CINEMA DSP parameters according to the reflected sounds.

The structure of the speaker is highly stable

The Yamaha Rx A2080 speaker has a beautiful and neat design with an aluminum front panel that looks very classy but equally elegant. The most outstanding feature of this speaker line is its durability and rigidity. Moreover, it is easy to coordinate with the interior space of your home.

Optimal performance

Each part in this AV receiver has a certain influence on the sound quality of the speaker system. With aventage models it takes more time to select the correct parts and the highest quality. Components include a large power amplifier, a damping heatsink, a high-performance DSP unit, and a large power transformer. The purpose of these components is to help achieve the highest possible level of performance.

Specifications of YAMAHA RX A2080

• Channel : 9.2
• Rated Output Power (1kHz, 2ch driven) : 155 W (8 ohms, 0.9% THD)
• Rated Output Power (20Hz-20kHz, 2ch driven) : 140 W (8 ohms, 0.06% THD)
• Maximum Effective Output Power (1kHz, 1ch driven) (JEITA) : 220 W (8 ohms, 10% THD)
• Dynamic Power / Ch (Front L/R, 8/6/4/2 ohms) : 165 / 210 / 285 / 405 W
• Surround:AI : Yes
• Cinema DSP : Yes (HD3)
• DSP Programs : 24
• Dialog Level Adjustment : Yes
• Virtual Presence Speaker : Yes
• Virtual Surround Back Speaker : Yes
• Dialogue Lift : Yes (no presence speakers required)
• SILENT Cinema / Virtual Cinema DSP : Yes (Virtual CINEMA FRONT)
• Dolby Atmos : Yes
• Dolby TrueHD : Yes
• Dolby Digital Plus : Yes
• Dolby Surround : Yes
• DTS:X : Yes
• DTS-HD Master Audio : Yes
• File Format : MP3 / WMA / MPEG-4 AAC: up to 48 kHz / 16-bit, ALAC: up to 96 kHz / 24-bit, FLAC: up to 192 kHz / 24-bit, WAV / AIFF: up to 192 kHz / 24-bit, DSD: up to 11.2 MHz
• Pure Direct : Yes (with video on mode)
• Compressed Music Enhancer : Yes
• High-resolution Music Enhancer : Yes
• YPAO multi-point measurement : Yes with R.S.C. (Reflected Sound Control), 3D, Precision EQ Calculation and Angle Measurement
• YPAO Volume : Yes
• Adaptive DRC (Dynamic Range Control) : Yes
• Initial Volume and Maximum Volume Setting : Yes
• A.R.T. Wedge : Yes
• Bi-amp Capability : Yes
• Audio Delay : Yes (0-500 ms)
• DA Converter : ESS 384 kHz / 32-bit SABRE Premier DAC ES9007S x 2
• 4K Ultra HD Pass-through and Upscaling : Yes (4K / 60p, 4:4:4)
• HDMI 3D Pass-through : Yes
• HDMI eARC : Yes (via future firmware update)
• HDMI Audio Return Channel : Yes
• HDMI Upscaling : Yes (Analog to HDMI® / HDMI to HDMI)
• Video adjustment : Yes
• Deep Color / x.v.Color / 24Hz Refresh Rate / Auto Lip-Sync : Yes
• MusicCast Surround : Yes
• Wi-Fi : Yes (2.4 / 5 GHz)
• AirPlay : Yes
• Bluetooth : Yes (SBC / AAC)
• Phono Input : Yes
• Component Video Input/Output : 2 / 0
• HDMI Input/Output : 7 / 3 (HDCP 2.2, HDR10 / Dolby Vision / HLG and BT.2020 compatible)
• HDMI CEC : Yes (SCENE, device control)
• USB Input : USB memory
• Network Port : Yes
• Front AV Input : USB / analog audio
• Digital Audio Input / Output: Optical : 3 / 0
• Digital Audio Input / Output: Coaxial : 3 / 0
• Analog Audio Input / Output : 9 (front 1) / 0
• Composite Video Input / Output : 4 / 0
• Preout : 7.2-ch
• Headphone Output : 1
• FM / AM Tuner : Yes
• On-Screen Display : Graphical User Interface
• SCENE : SCENE PLUS (8 sets)
• App Control : Yes (iPhone / iPad / Android phone / tablet)
• Web Browser Control : Yes
• Remote Control Unit : Yes
• Zone 2 Audio Output : Preout / HDMI
• Zone 3 Audio Output : Preout
• Zone 4 Audio Output : HDMI
• Powered Zone : Zone 2 / 3
• Zone Video Output : HDMI / component / composite
• Zone HDMI : Yes (advanced HDMI zone switching)
• Zone B Output : HDMI
• Zone GUI : Yes
• RS-232C Interface : Yes
• +12V Trigger Output : 2
• Remote (IR) Input/Output : 1 / 1
• Party Mode : Yes
• Standby Power Consumption (IR only) : ≤ 0.1 W
• Auto Power Standby : Yes
• ECO Mode : Yes
• Dimensions (W x H x D) : 17-1/8" x 7-1/2" x 18-5/8" (with antenna up: 17-1/8" x 10-5/8" x 18-5/8")
• Weight : 37.5 lbs.
