MÁY PHUN KHÓI MARTIN RUSH JEM ZR44 chất lượng cao, giá tốt

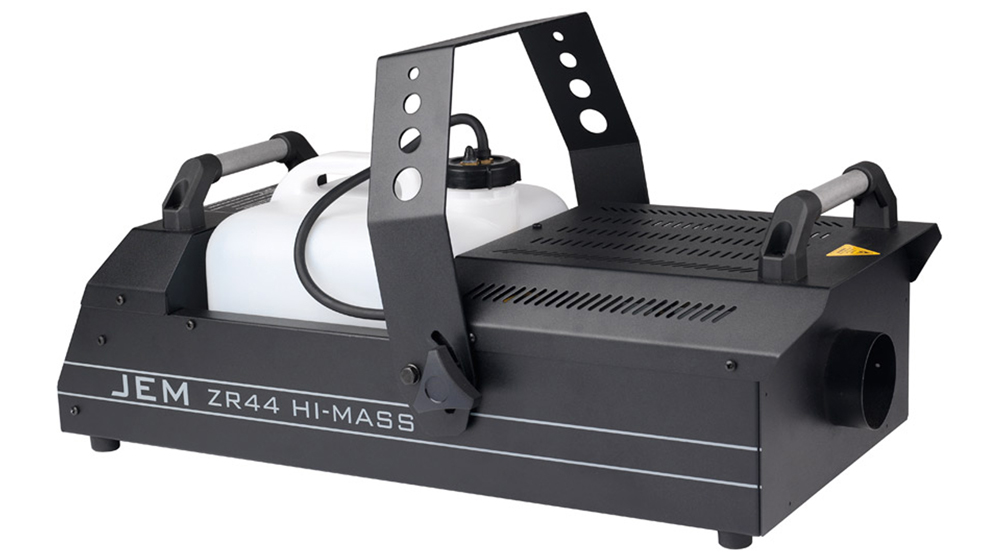

The Jem ZR44 Hi-Mass™ is a reliable and highly efficient fogger capable of precise fog delivery from subtle to massive. Ideal for a variety of settings from small venues to huge stadiums and arenas, it features advanced technology for top-quality performance, as well as advances in digital functionality such as RDM compatibility.

MARTIN RUSH JEM ZR44 Feature

  • 3 & 5 pin DMX interface
  • Prepared for multifunctional digital remote
  • RDM capable
  • Floor standing or truss mounting
  • Neutrik PowerCon connector
  • 1200 m³/min fog output
  • Continuous output
  • Tough and solid design
  • 1800 W heat exchanger
  • 7.5 min heat-up time
  • Indirect Fluid Sensing System
  • Proprietary Pro Steam Simulation fluid solution
  • Different fluid options for different applications
  • Leaves no oil residue on light fixtures
  • Soft Start technology

Specifications of MARTIN RUSH JEM ZR44

PHYSICAL
  • Length: 687 mm (27.1 in.)
  • Length with optional drip tray: 752 mm (30.0 in.)
  • Width: 379 mm (15.0 in.)
  • Height: 248 mm (9.8 in.)
  • Height with hanging bracket: 353 mm (13.9 in.)
  • Weight, dry: 19.0 kg (41.9 lbs.)
  • Weight, filled: 28.5 kg (62.9 lb.)
PERFORMANCE
  • Coverage volume: 1200 m3 (42,378 ft3) per minute
  • Fluid consumption (maximum): 120 ml/minute
  • Continuous effect output
  • Ready time: 10 minutes
CONTROL AND PROGRAMMING
  • Control options: Integrated analog remote control, DMX, optional digital remote control, master/client link mode
  • Control parameters: Continuous or timer-controlled variable output
  • Fog: Variable output control, 0-100%
  • DMX channels: 1
  • DMX compliance: USITT DMX512-A
  • RDM compliance: ANSI/ESTA E1.20 RDM
CONSTRUCTION
  • Color: Black, silver
  • Housing: Steel and aluminum
  • Fluid reservoir: 9.5 liter drop-in
  • Hanging bracket: Integrated yoke with safety attachment point
  • Heat exchanger: 1800 W, thermally protected
  • Fluid pump: Oscillating piston, high pressure
  • Fluid management: Fluid out sensing, sealed for transportation
  • External fluid control: Fluid sensing
  • Drip tray: Optional, bolt-on tray with reusable collection sponge
INSTALLATION
  • Mounting: Standing or hanging
  • Orientation: Up to +/- 45° from horizontal
  • Clearance around machine: 100 mm (4 in.)
CONNECTIONS
  • AC power: Neutrik PowerCon
  • DMX, link mode in/out: 3- and 5-pin locking XLR
  • Remote control: 3-pin locking XLR
  • Firmware: AVR socket
ELECTRICAL
  • EU Model
    • AC power: 220-240 V, 50/60 Hz
    • Main fuse: 10 AT (slow blow), 250 V
    • Typical power and current: 1890 W, 8.3 A*
  • US Model
    • AC power: 100-130 V, 50/60 Hz
    • Main fuse: 20 AT (slow blow), 125 V
    • Typical power and current: 1890 W, 14.6 A*
    • Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
APPROVALS
  • EU model
    • EU safety: EN 60 335-1+A15, EN 62233
    • EU EMC: EN 61000-6-3:3
    • EU immunity: EN 61000-6-1
    • Australia/NZ (pending): RCM
  • US model
    • US safety: UL 998
    • Canada safety: CSA C22.2 No.104.01
INCLUDED ITEMS
  • Analog remote control: P/N 92765038
  • Fluid reservoir 9.5 l: P/N 34300528
  • Power input cable, EU, Neutrik powerCON, stripped ends, 2.5 m (8.2 ft.): P/N 11501041
  • Power input cable, US, Neutrik powerCON, molded NEMA 5-15P, 2.5 m (8.2 ft.): P/N 11501042
ACCESSORIES
  • JEM™ ZR44 Digital Remote Control: P/N 92765037
  • JEM™ ZR44 Ducting Kit with 5 m (16.4 ft.) ducting: P/N 92625005
  • JEM™ ZR44 Drip Tray: P/N 92620011
  • Approved Fluids
    • JEM™ Pro Smoke Studio
    • JEM™ Pro Smoke Super
    • JEM™ Pro Smoke High Density
    • JEM™ I-Fog Fluid
    • JEM™ Pro Steam Simulation Fluid™
    • JEM™ Pro Clean Supreme
    • Various sizes available - contact your dealer or see 'Fluids' product pages for details
  • Installation hardware
    • G-clamp (vertical hanging suspension only): P/N 91602003
    • Half-coupler clamp: P/N 91602005
    • Quick trigger clamp (vertical hanging suspension only): P/N 91602007
  • Service Tools
    • Epsilon 5 AVR Programmer: P/N 50502004
    • Temperature Calibration Box: P/N 92620005

PHYSICAL

  • Length: 687 mm (27.1 in.)
  • Length with optional drip tray: 752 mm (30.0 in.)
  • Width: 379 mm (15.0 in.)
  • Height: 248 mm (9.8 in.)
  • Height with hanging bracket: 353 mm (13.9 in.)
  • Weight, dry: 19.0 kg (41.9 lbs.)
  • Weight, filled: 28.5 kg (62.9 lb.)

PERFORMANCE

  • Coverage volume: 1200 m3 (42,378 ft3) per minute
  • Fluid consumption (maximum): 120 ml/minute
  • Continuous effect output
  • Ready time: 10 minutes

CONTROL AND PROGRAMMING

  • Control options: Integrated analog remote control, DMX, optional digital remote control, master/client link mode
  • Control parameters: Continuous or timer-controlled variable output
  • Fog: Variable output control, 0-100%
  • DMX channels: 1
  • DMX compliance: USITT DMX512-A
  • RDM compliance: ANSI/ESTA E1.20 RDM

CONSTRUCTION

  • Color: Black, silver
  • Housing: Steel and aluminum
  • Fluid reservoir: 9.5 liter drop-in
  • Hanging bracket: Integrated yoke with safety attachment point
  • Heat exchanger: 1800 W, thermally protected
  • Fluid pump: Oscillating piston, high pressure
  • Fluid management: Fluid out sensing, sealed for transportation
  • External fluid control: Fluid sensing
  • Drip tray: Optional, bolt-on tray with reusable collection sponge

INSTALLATION

  • Mounting: Standing or hanging
  • Orientation: Up to +/- 45° from horizontal
  • Clearance around machine: 100 mm (4 in.)

CONNECTIONS

  • AC power: Neutrik PowerCon
  • DMX, link mode in/out: 3- and 5-pin locking XLR
  • Remote control: 3-pin locking XLR
  • Firmware: AVR socket

ELECTRICAL

  • EU Model
    • AC power: 220-240 V, 50/60 Hz
    • Main fuse: 10 AT (slow blow), 250 V
    • Typical power and current: 1890 W, 8.3 A*
  • US Model
    • AC power: 100-130 V, 50/60 Hz
    • Main fuse: 20 AT (slow blow), 125 V
    • Typical power and current: 1890 W, 14.6 A*
    • Measurements made at nominal voltage. Allow for a deviation of +/- 10%.

APPROVALS

  • EU model
    • EU safety: EN 60 335-1+A15, EN 62233
    • EU EMC: EN 61000-6-3:3
    • EU immunity: EN 61000-6-1
    • Australia/NZ (pending): RCM
  • US model
    • US safety: UL 998
    • Canada safety: CSA C22.2 No.104.01

INCLUDED ITEMS

  • Analog remote control: P/N 92765038
  • Fluid reservoir 9.5 l: P/N 34300528
  • Power input cable, EU, Neutrik powerCON, stripped ends, 2.5 m (8.2 ft.): P/N 11501041
  • Power input cable, US, Neutrik powerCON, molded NEMA 5-15P, 2.5 m (8.2 ft.): P/N 11501042

ACCESSORIES

  • JEM™ ZR44 Digital Remote Control: P/N 92765037
  • JEM™ ZR44 Ducting Kit with 5 m (16.4 ft.) ducting: P/N 92625005
  • JEM™ ZR44 Drip Tray: P/N 92620011
  • Approved Fluids
    • JEM™ Pro Smoke Studio
    • JEM™ Pro Smoke Super
    • JEM™ Pro Smoke High Density
    • JEM™ I-Fog Fluid
    • JEM™ Pro Steam Simulation Fluid™
    • JEM™ Pro Clean Supreme
    • Various sizes available - contact your dealer or see 'Fluids' product pages for details
  • Installation hardware
    • G-clamp (vertical hanging suspension only): P/N 91602003
    • Half-coupler clamp: P/N 91602005
    • Quick trigger clamp (vertical hanging suspension only): P/N 91602007
  • Service Tools
    • Epsilon 5 AVR Programmer: P/N 50502004
    • Temperature Calibration Box: P/N 92620005
