MICRO SHURE SLXD14A/85

Màu sắc:

Đen

  • Chia sẻ:
  • 1,297

Giá bán:

21.491.000 VNĐ

Miễn phí cà thẻ

Miễn phí giao hàng, lắp đặt trong nội thành

Chọn màu sản phẩm trước khi mua hàng

MUA HÀNG NGAY

HƯỚNG DẪN MUA HÀNG

BÁO GIÁ CAO

Tư vấn - Mua hàng

0933.252.606

MICRO SHURE SLXD14A/85 - Bộ micro không dây giá tốt

The SLXD14/85 Wireless System delivers transparent, 24-bit digital audio and rock-solid RF performance for a wide range of applications, from day-long presentations to nighttime performances. Operate up to 32 compatible systems per 44 MHz band, with easy setup and optional rechargeability accessories for wireless excellence, wherever required. Ships with SLXD4 single-channel receiver, SLXD1 bodypack transmitters and WL185 Cardioid Lavalier Microphone with antenna and rackmount accessories and 2 AA batteries.

SHURE SLXD14A/85 Feature

SLXD4 Digital Wireless Receiver

SLXD4 Digital Wireless delivers transparent, 24-bit digital audio and rock solid RF performance with easy setup and rechargeability options in a suite of versatile wireless system configurations. Featuring industryleading digital wireless technology and design, the SLXD4 easily syncs wireless transmitters. A variety of interchangeable vocal microphone choices guarantees the right solution for a wide range of applications, from day-long conference to nighttime performances.

  • Transparent 24-bit digital audio
  • Extended 20 Hz to 20 kHz frequency range (microphone dependent)
  • 120 dB dynamic range
  • Digital predictive switching diversity
  • 44 MHz tuning bandwidth (region dependent)
  • 32 available channels per frequency band (region dependent)
  • Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
  • Easy pairing of transmitters and receivers over scan and IR sync
  • Rugged metal construction

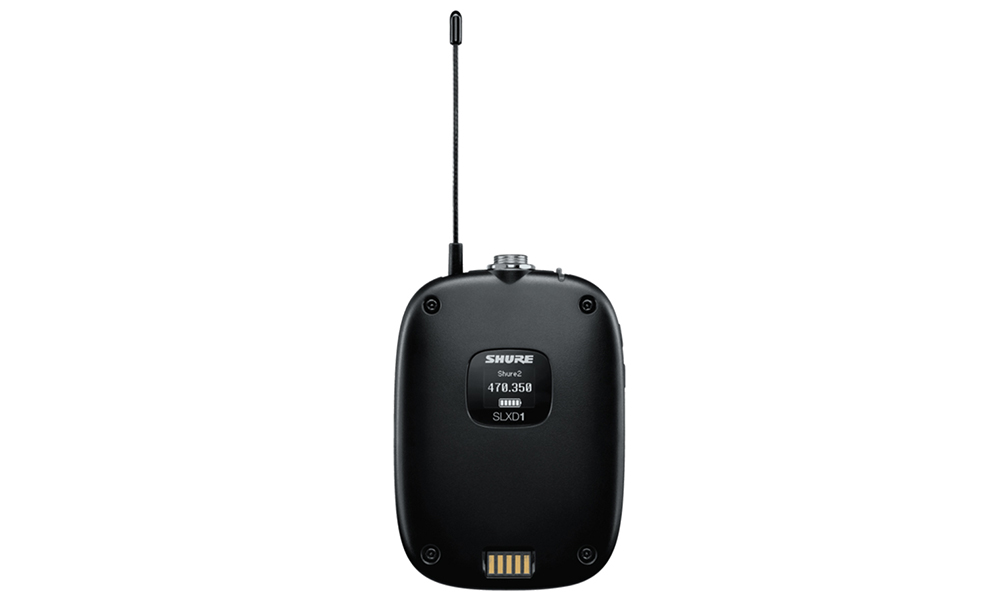

SLXD1 Digital Wireless Bodypack Transmitter

SLXD1 Digital Wireless delivers transparent, 24-bit digital audio and rock solid RF performance with easy setup and rechargeability options in a suite of versatile wireless system configurations. Featuring industry-leading digital wireless technology and design, the SLXD1 easily syncs with a wireless receiver. TQG connectivity to a variety of microphone options guarantees the right solution for a wide range of applications, from day-long conference to nighttime performances.

  • Transparent 24-bit digital audio
  • Extended 20 Hz to 20 kHz frequency range (microphone dependent)
  • 120 dB dynamic range
  • Digital predictive switching diversity
  • 44 MHz tuning bandwidth (region dependent)
  • 32 available channels per frequency band (region dependent)
  • Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
  • Easy pairing of transmitters and receivers over scan and IR sync
  • Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery
  • TQG connectivity offers a variety of microphone options
  • Ergonomic, durable plastic construction

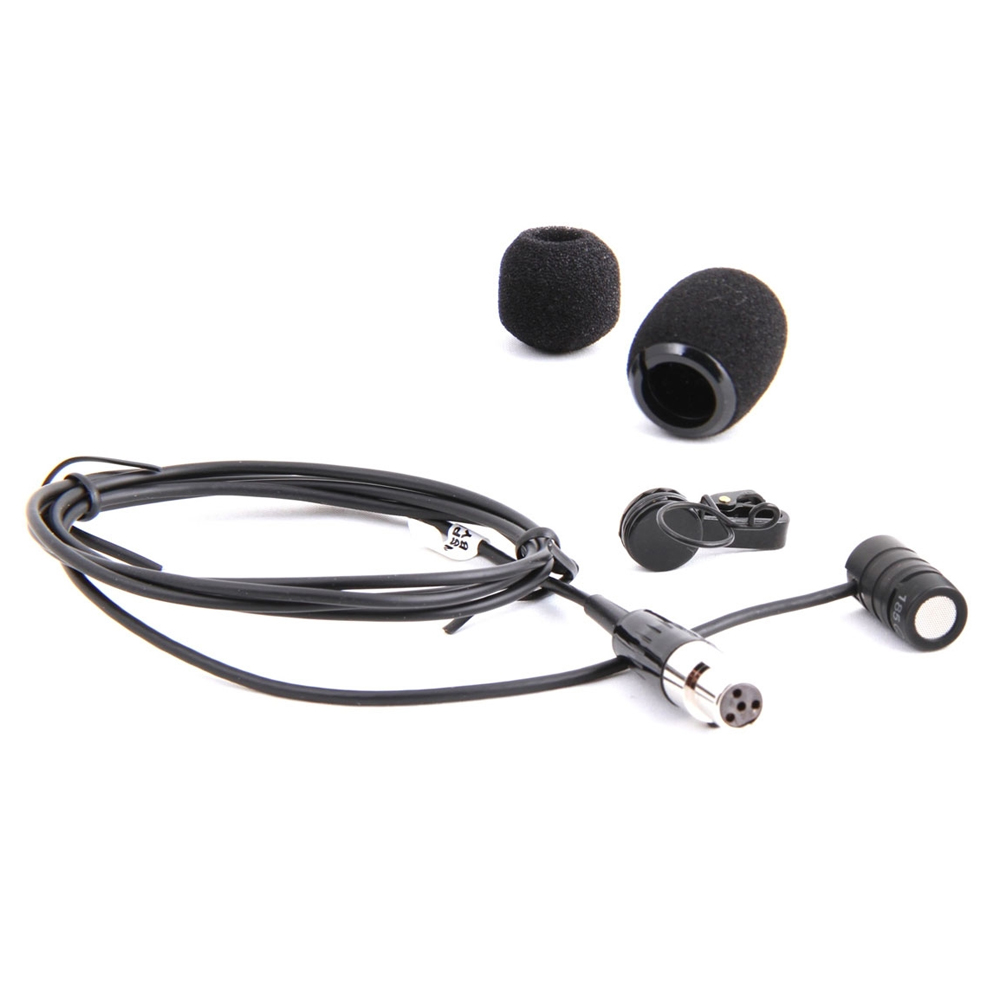

WL185 Cardioid TQG Lavalier Microphone

The WL185 cardioid miniature lavalier condenser microphone is designed for use in speech applications such as broadcast presenting, speeches, lectures and for use in houses of worship.

Cardioid TQG lavalier microphone offers an interchangeable cartridge and consists of a tie clip, and foam windscreen. Features include wide dynamic range and frequency response for accurate sound reproduction and increased immunity to noise.

All the microflex series of microphones use interchangeable cartridges (sold seperately) which means you can swap between cardioid, supercardioid and omnidirectional condenser cartridges simply by screwing them on to the top of the lavalier mic.

The WL185 is designed for wireless use with a bodypack transmitter. If you wish to use it wired, choose the MX185 which is the same microphone but including an in-line preamplifier and a 1.2m cable with TA4F connector.

  • Wide dynamic range and frequency response for accurate sound reproduction across the audio spectrum
  • Interchangeable cartridges that provide an optimal choice for each application
  • Rotatable tie-clip that pivots in 90 degree increments for placement flexibility
  • Supplied snap-fit foam windscreen that controls breath noise and stays on securely
  • Supplied dual tie clip holds two microphones for dual miking applications

Specifications of SHURE SLXD14A/85

SLXD4 Digital Wireless Receiver

General

  • Dimensions (H × W × D): 1.65 × 7.76 × 5.98 in (42 × 197 × 152 mm)
  • Weight:  1.8 lb (816 g) without antennas
  • Housing Galvanized Steel
  • Power Requirements 15 VDC @ 600 mA *Supplied by external power supply (tip positive)

RF Input

  • Spurious Rejection >75 dB Typical
  • Connector Type BNC
  • Impedance 50 Ω

Audio output

  • Gain Adjustment Range –18 to +42 dB in 1 dB steps
  • Configuration
    • 1/4" (6.35 mm): Balanced (Tip=audio +, Ring=audio –, Sleeve=ground)
    • XLR: Balanced (1=ground, 2=audio +, 3=audio –)
  • Impedance
    • 1/4" (6.35 mm): 1.3 kΩ (670 Ω, Unbalanced)
    • XLR (line): 400 Ω (200 Ω Unbalanced)
    • XLR (mic): 150 Ω
  • Full Scale Output
    • 1/4" (6.35 mm): +15 dBV differentially (+9 dBV single)
    • XLR (LINE setting): +15 dBV
    • XLR (MIC setting): –15 dBV
  • Mic/Line Switch 30 dB pad
  • Phantom Power Protection
    • 1/4" (6.35 mm): Yes
    • XLR: Yes

Networking

  • Network Interface Single Port Ethernet 10/100 Mbps
  • Network Addressing Capability DHCP or Manual IP address
  • Maximum Cable Length 100 m (328 ft)

SLXD1 Digital Wireless Bodypack Transmitter

General

  • Battery Type Rechargeable Li-Ion or 1.5 V AA batteries
  • Dimensions (H × W × D): 3.86 × 2.68 × 1.0 in (98 × 68 × 25.5 mm)
  • Weight 3.1 oz (89 g)
  • Housing PC/ABS

Audio Input

  • Connector 4-Pin male mini connector (TA4M)
  • Configuration Unbalanced
  • Impedance 1 MΩ
  • Maximum Input Level 8.2 dBV (2.57 Vrms, 7.27 Vpp)
  • Preamplifier Equivalent Input Noise (EIN): –118 dBV

RF Output

  • Antenna Type 1/4 Wave
  • Occupied Bandwidth <200 kHz
  • Modulation Type Shure Propietary Digital
  • Power 1 mW/10 mW

WL185 Cardioid TQG Lavalier Microphone

  • Type: Condenser (electret bias)
  • Frequency Response: 50 to 17,000 Hz
  • Output Impedance: 1800 Ω
  • Sensitivity (1 PA = 94 dB SPL): -45.5  dBV/Pa
  • Maximum SPL: 130.5  dB SPL
  • Output Noise (A-Weighted): 28.0  dB SPL
  • Dynamic Range: 102.5 dB

SLXD4 Digital Wireless Receiver

General

  • Dimensions (H × W × D): 1.65 × 7.76 × 5.98 in (42 × 197 × 152 mm)
  • Weight:  1.8 lb (816 g) without antennas
  • Housing Galvanized Steel
  • Power Requirements 15 VDC @ 600 mA *Supplied by external power supply (tip positive)

RF Input

  • Spurious Rejection >75 dB Typical
  • Connector Type BNC
  • Impedance 50 Ω

Audio output

  • Gain Adjustment Range –18 to +42 dB in 1 dB steps
  • Configuration
    • 1/4" (6.35 mm): Balanced (Tip=audio +, Ring=audio –, Sleeve=ground)
    • XLR: Balanced (1=ground, 2=audio +, 3=audio –)
  • Impedance
    • 1/4" (6.35 mm): 1.3 kΩ (670 Ω, Unbalanced)
    • XLR (line): 400 Ω (200 Ω Unbalanced)
    • XLR (mic): 150 Ω
  • Full Scale Output
    • 1/4" (6.35 mm): +15 dBV differentially (+9 dBV single)
    • XLR (LINE setting): +15 dBV
    • XLR (MIC setting): –15 dBV
  • Mic/Line Switch 30 dB pad
  • Phantom Power Protection
    • 1/4" (6.35 mm): Yes
    • XLR: Yes

Networking

  • Network Interface Single Port Ethernet 10/100 Mbps
  • Network Addressing Capability DHCP or Manual IP address
  • Maximum Cable Length 100 m (328 ft)

SLXD1 Digital Wireless Bodypack Transmitter

General

  • Battery Type Rechargeable Li-Ion or 1.5 V AA batteries
  • Dimensions (H × W × D): 3.86 × 2.68 × 1.0 in (98 × 68 × 25.5 mm)
  • Weight 3.1 oz (89 g)
  • Housing PC/ABS

Audio Input

  • Connector 4-Pin male mini connector (TA4M)
  • Configuration Unbalanced
  • Impedance 1 MΩ
  • Maximum Input Level 8.2 dBV (2.57 Vrms, 7.27 Vpp)
  • Preamplifier Equivalent Input Noise (EIN): –118 dBV

RF Output

  • Antenna Type 1/4 Wave
  • Occupied Bandwidth <200 kHz
  • Modulation Type Shure Propietary Digital
  • Power 1 mW/10 mW

WL185 Cardioid TQG Lavalier Microphone

  • Type: Condenser (electret bias)
  • Frequency Response: 50 to 17,000 Hz
  • Output Impedance: 1800 Ω
  • Sensitivity (1 PA = 94 dB SPL): -45.5  dBV/Pa
  • Maximum SPL: 130.5  dB SPL
  • Output Noise (A-Weighted): 28.0  dB SPL
  • Dynamic Range: 102.5 dB
