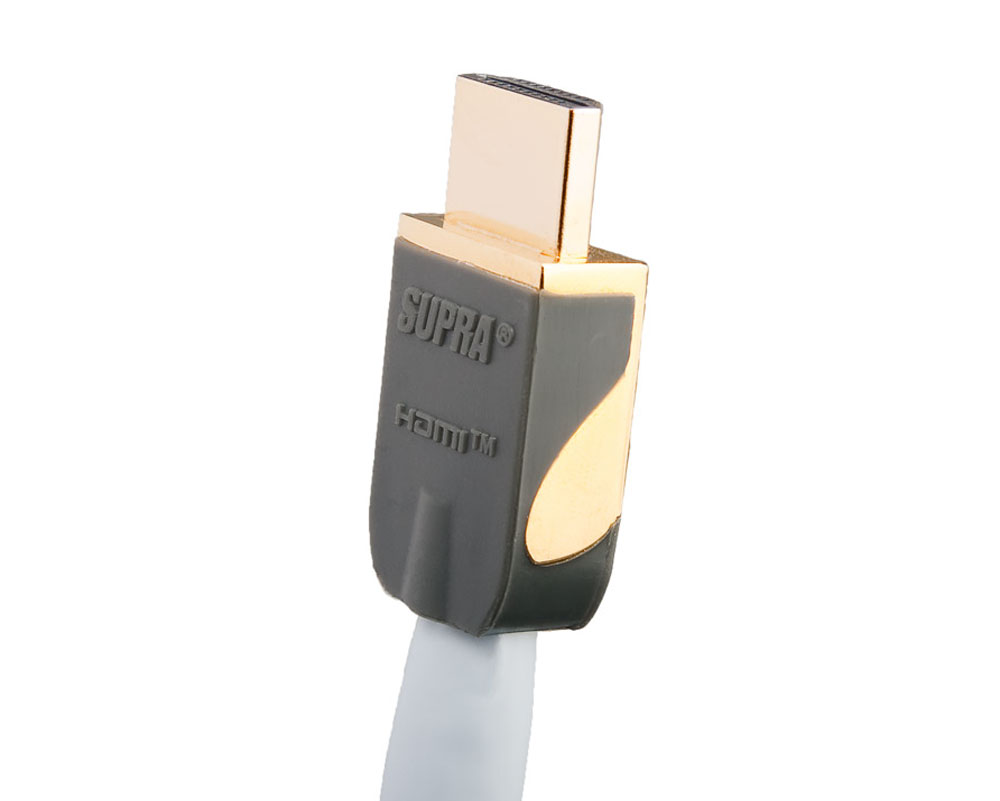

SUPRA HDMI-HDMI HD A/V

SUPRA HDMI-HDMI HD A/V FEATURE

SUPRA High Speed HDMI with Ethernet Cable (v2.0)

- Signal Bandwidth: 1100 MHz
- TMDS Bandwidth: 18 Gbit/s
- Color Depth: 48 bit/px
- 4K x 2K Resolution support: Enables video resolutions far beyond 1080p.
- 4096 x 2160@60Hz 1-6M, 4096 x 2160@24/30Hz 8-15M
- Deep Color, x.v.Color
- Auto Lip Sync
- Dolby TrueHD, DT-HD Master Audio
- 3D over HDMI
- Audio Return Channel
- Ethernet Channel

High Speed HDMI with Ethernet

SUPRA launched its first HDMI cable in 2004. 9 years of continuous product development has resulted in the Supra HD5 HDMI , which (according to us) is the best HDMI cable on the market, offering HDMI High Speed with Ethernet & 4K resolution. We guarantee that the cable can handle all HDMI signals up to 32m. SUPRA HD5 is tested and approved in compliance with the latest test provisions by HDMI´s Accredited Testing Center in the USA. A secure quality guarantee of our HDMI cables. The bandwidth in the HD5 (used in all of our HDMI/DVI cables) is 1100MHz, almost four times the spec of HDMI High Speed (340MHz). There are some interesting cables out there claiming to do the job but only a few are actually approved for it. SUPRA HDMI is a safe choice.

SUPRA HDMI Features & benefits

- Transmits today’s challenging formats flawlessly
- Future proof - Meets today’s HDMI standard and known requirements of tomorrow
- Sturdy design - Withstand the normal installation abuse
- 23AWG leads - For minimum losses
- Triple screen technology - Provides for long distance clearance hence freedom of installation with maintained signal integrity
- Made in Sweden, three step quality plan - Unsurpassed quality and reliability

High resolution picture and sound

We often meet scepticism when we talk about HDMI cables. ”Does it really matter?” ”I mean, it’s only a data stream? Yes, it is a stream of digital bits. Yes, it does matter. Unfortunately there is an intermediate state before the signal is so corrupt it cannot be read and blanks out. Many claim that if the screen shows, the signal is good enough. There is circuitry in the receiver which tries to repair broken data stream by buffering and error correction, but this is based on best possible estimates and is not necessarily what was sent. You might experience sync problems (delays), distorted colorations, insufficient blackness, noise and unexplainable audible pops during which the hardware is working overtime trying to repair the fragile bitstream. Do your precious hardware the best possible favour you can by connecting it using SUPRA HDMI cables and both you and your equipment will fully enjoy the show.

Specifications of SUPRA HDMI-HDMI HD A/V

- Standard: HDMI 2.0, High speed with ethernet
- Connection Config: Single-Link
- Connectors: HDMI-HDMI
- Signal Direction:
- Application Examples: DVD/Projector/TV
- Max Resolution: 4K
- Solder Tin: Almit SR-34 Super
- Cable clamping: Molded
- Cable: SUPRA HD5
- Cross section Area: 5xTMDS 0.26 / 23 (mm2/AWG)
- Wire Material: Solid OFC
- Insulation: PE Foam
- Inner Screen, Coverage: Alu/PET Foil, 100%
- Comm. Conductors: 5xAWG 26 PE
- Outer Screen, Coverage: Alu/PET Foil & Braid, 100%
- Jacket: Heat & Ageing Resistant PVC
- Flameretardancy: No
- Cable diameter: 9.5 (mm)
- Weight/m: 0.106 (kg/m)

Electrical performance

- Resistance: 82 (Ohm/km)
- Capacitance: 42 (pF/m)
- Char. Impedance: 100 (Ohm)
- Velocity Factor: 0.8c
