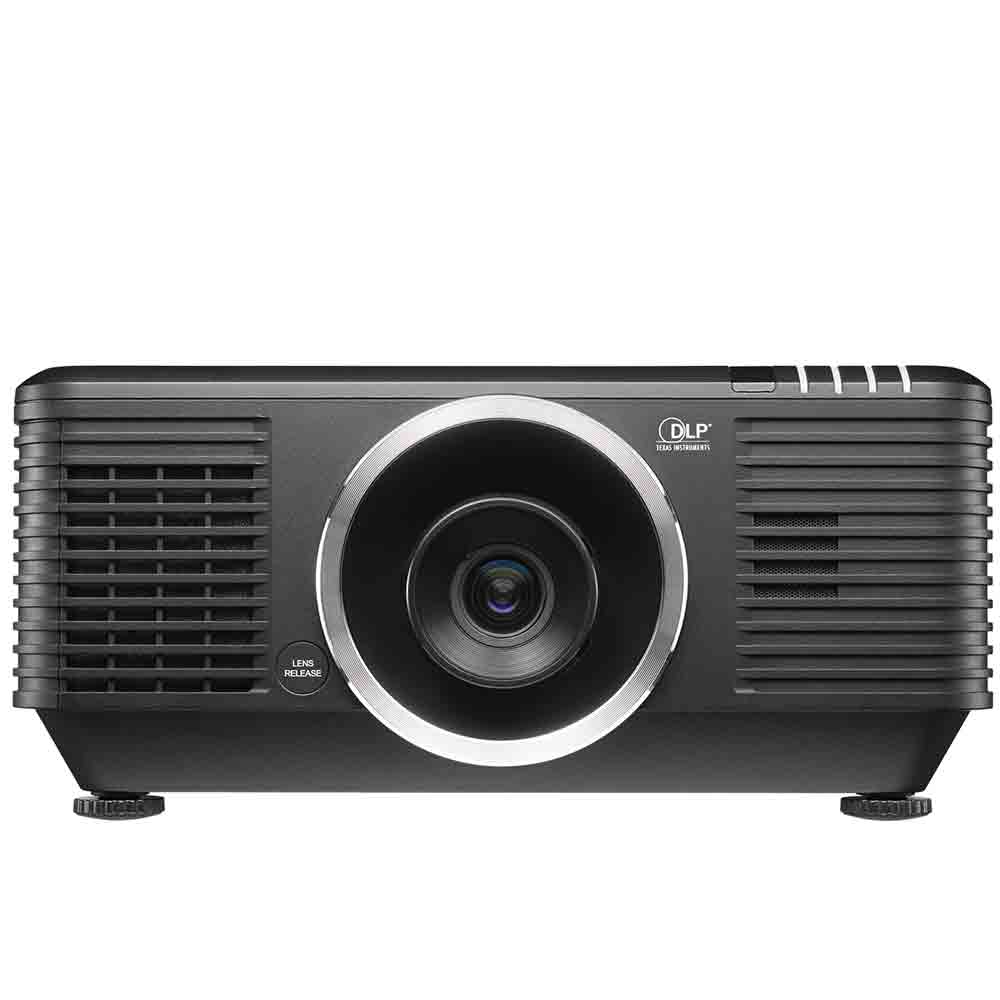

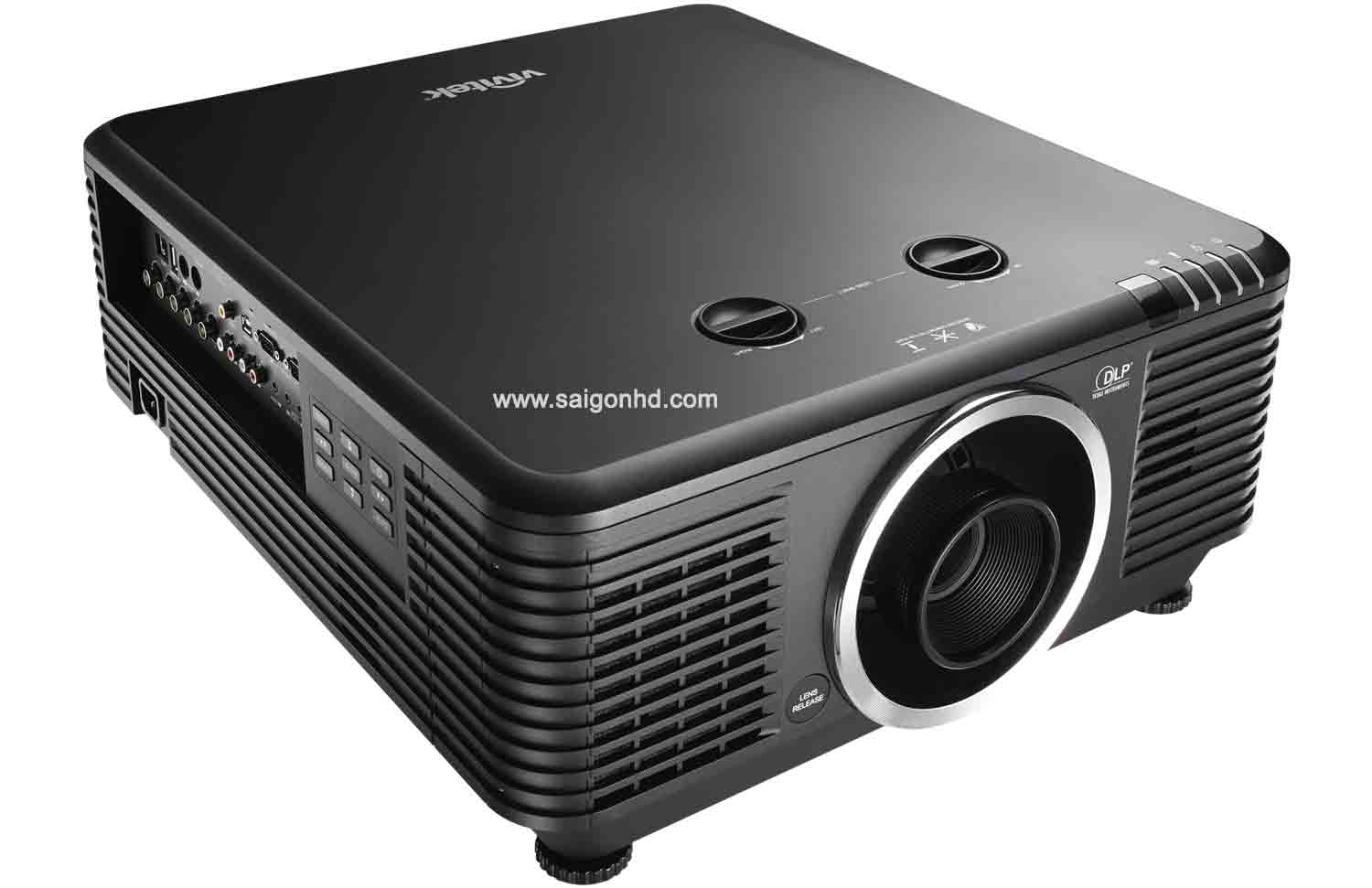

VIVITEK DU7090Z

Lamp-Free and Eco-Friendly

With impressively vivid colors and a high brightness of 6,000 ANSI lumens, the DU7090Z offers the next generation of advanced projection technology laser. Designed lamp-free, it provides a low cost of ownership, with minimal maintenance, and gives a stable, high-quality projection for up to 20,000 hours. The DU7090Z offers an immersive big-screen experience with an unbeatable return on investment.

Key features

• DLP® technology with BrilliantColor™ for vibrant and rich picture quality
• 6,000 ANSI lumens of brightness, WUXGA resolution, and 15,000:1 contrast ratio for clear, crisp and bright image
• Laser Phosphor Illumination source, up to 20,000 hours operations
• Designed for heavy duty 24/7 operations
• HDBaseT for easy to implement High Definition signal transmission over up to 100m distance
• Installation flexibility with lens shift, horizontal and vertical keystone corrections, or 4 corner adjustment
• Built-in 2x 10W audio speakers with multiple audio-in and audio-out ports
• Integrated network monitoring and management solutions including Crestron® RoomView™, Extron, and etc.
• DICOM Simulation Mode for medical training and seminars (DICOM Simulation Mode is not for medical diagnosis purpose)
• Compatible with NovoPRO wireless collaboration solution

Specifications of VIVITEK DU7090Z

• Display Type : Single Chip 0.67” DLP Technology by TI
• Brightness : 6,000 ANSI Lumens, ISO21118
• Native Resolution : WUXGA (1920 x 1200)
• Maximum Resolution : WUXGA (1920 x 1200) at 60 Hz
• Contrast Ratio : 15,000:1
• Lamp Life and Type : Up to 20,000 Hours, Laser Phosphor Light Engine
• Image Size (Diagonal)* : Up to 500” Diagonal (Lens Dependent)
• Aspect Ratio : 16:10 (4:3, 16:9, 2.35:1 Switchable)
• Lens : Manual Focus/Zoom and Lens Shift
• Keystone Correction : Vertical ±25°, Horizontal ±30°
• Horizontal Frequency : 15, 31–91.4 KHz
• Vertical Scan Rate : 24-30 Hz, 47-120 Hz
• 3D : Yes with DLP® Link™, HDMI 1.4 (Blu-ray 3D)
• Operating Temp. : 0-40°, 10-90% RH Non-Condensing
• Lens Shift Range* : Vertical: -15% + 55%, Horizontal: -5% +5%
• Computer Compatibility : VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA at 60 Hz, Mac
• Video Compatibility : SDTV (480i, 576i) / EDTV (480p, 576p) / HDTV (720p, 1080i, 1080p), NTSC (M, 3.58/4.43 MHz), PAL (B,D,G,H,I,M,N) SECAM (B,D,G,K,K1,L)
• I/O Connection Ports : HDMI v1.4b, MHL/HDMI 1.4b, DVI-D, Component (5 BNC) (RGBHV), 3D- Sync-In, VGA-In, Audio-In RCA (L/R), Audio-In (Mini-Jack), VGA-Out, Audio-Out RCA (L/R), 3D Sync-Out, USB Type A Power (5V/2.0A), RJ45, 12V Trigge r, RS-232-In, RS-232-Out, Wired Remote-In, Wired Remote-Out, HDBaseT™/LAN (Shared), USB (Service)
• Projection Orientation : 360° Orientation
• Security Solutions : Kensington® Security Slot, Security Bar, Keypad Lock
• Dimensions (WxDxH) : 517 x 470 x 202 mm (20.3” x 18.5” x 7.9”)
• Weight : 24 kg (52.9 lbs)
• Available Color : Black (DU7090Z-BK), White (DU7090Z-WH)
• Noise Level : 33 dB / 30 dB (Normal / Economy Mode)
• Power Supply; Power Cons. : AC 100-240V, 50/60 Hz; AC 100-240 V, 50/60 Hz
• Instant on/off : Yes
• Standard Accessories : AC Power Cord, VGA Cable, Lens Cap (TBD), Remote Control w/ Batteries, Filter, Documentation Kit
• Optional Accessories : Interchangeable Lens Options (x5)
