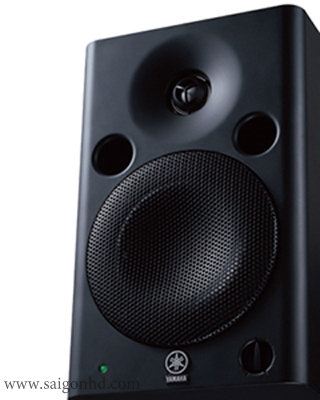

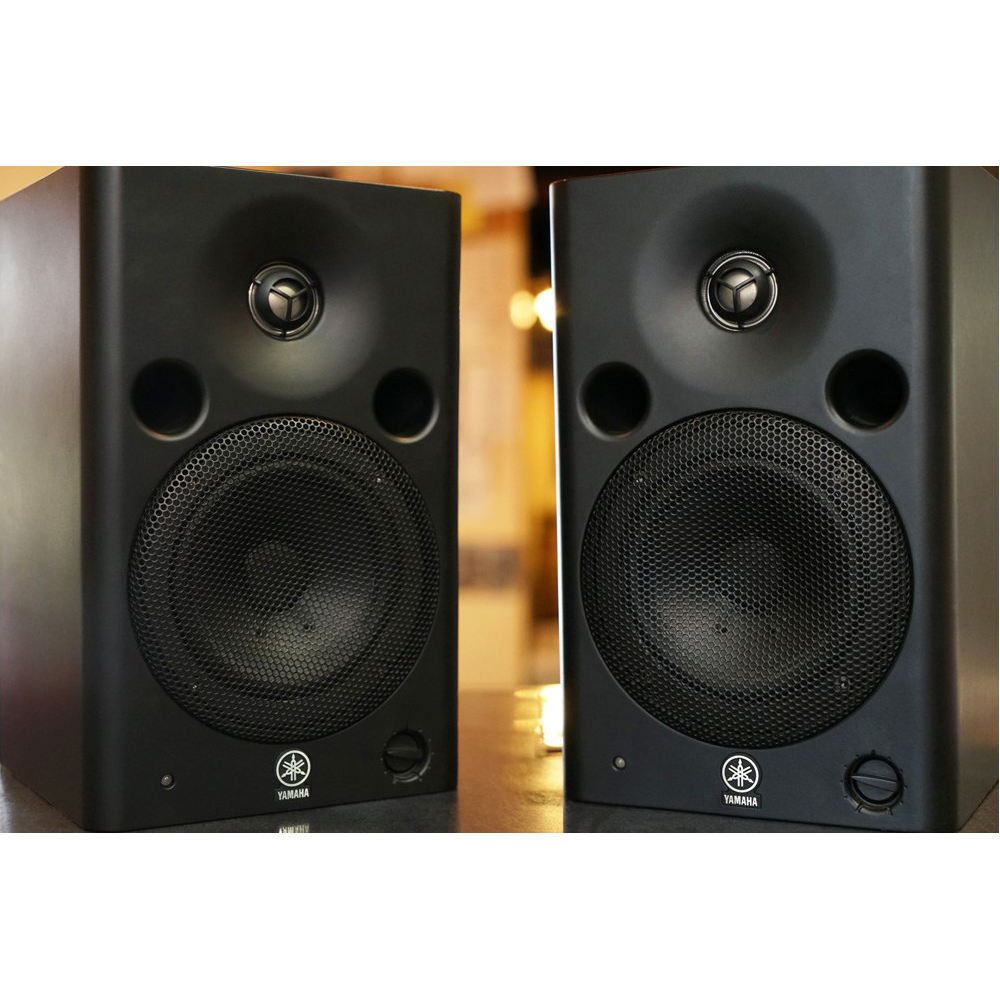

YAMAHA MSP5 STUDIO

Yamaha's "STUDIO" series monitors have been designed with serious monitoring in mind. Emphasis is on reference-quality reproduction precision that lets you hear sonic details, rather than flattering sound. They carry on in the tradition of the venerable NS10M STUDIO monitor speaker, which was the definitive near-field speaker monitor in an overwhelming majority of professional studios throughout the world for many years from the 80s onward. But technology has evolved dramatically right throughout the audio chain, and speakers must follow suit.The new top-of-the-line MSP7 STUDIO Powered Monitor Speaker is capable of delivering consistent quality and performance that you can rely on in modern production environments that handle any combination of digital and analog sources as well as stereo and surround formats.

MSP5 STUDIO - The choice of top recording and production engineers who demand unmatched accuracy and resolution that reveals critical sonic details. An unbeatable choice for production environments handling any combination of digital and analog sources in stereo or surround formats.

YAMAHA MSP5 STUDIO FEATURE

Highlight:

• 2-way bass-reflex bi-amplified near field studio monitor
• 5" cone woofer and 1" titanium dome high-frequency unit delivers 50Hz- 40kHz frequency response
• 67 watts (LF 40W + HF 27W) dynamic bi-amplified power.
• XLR balanced input and 1/4" unbalanced input.
• 31 positions Level Control facilitates precise overall system level matching.
• TRIM Control(High/Low).
• Full magnetic shielding.

An Ideal Choice for Small Project Studios

Like the larger MSP7 STUDIO, the MSP5 STUDIO is a two-way bi-amplified bassreflex system that delivers outstanding monitoring precision for digital or analog production in stereo or surround formats. The more compact dimensions of the MSP5 STUDIO make it an ideal choice for smaller project studios and DAW based production systems. The MSP5 STUDIO features a 5 inch cone woofer driven by a 40-watt amplifier and a 1 inch dome tweeter driven by a 27-watt amplifier. Other than woofer size, enclosure size, and amplifier power, the MSP5 STUDIO takes advantage of the same advanced materials and design technology that are behind the extraordinary performance of the MSP7 STUDIO. The woofer and titanium-dome tweeter feature advanced magnetic structures that achieve exceptionally low distortion, and the tweeter works with a unique waveguide horn that achieves broad, uniform high frequency dispersion over 120 degrees for optimum balance regardless of listening position. Advanced driver and enclosure design - including the low-diffraction rounded baffle - also ensure smooth, uniform dispersion across the system's full reproduction range. Flat frequency response out to 40 kHz makes the MSP5 STUDIO great for mastering, where high sample and bit rates are the norm.

Magnetically Shielded Enclosures

Along with their compact size and excellent performance, full magnetic shielding allows the MSP5 STUDIO speakers to be positioned near all types of audio, video, and computer equipment without sound degradation or negative effects on surrounding equipment.

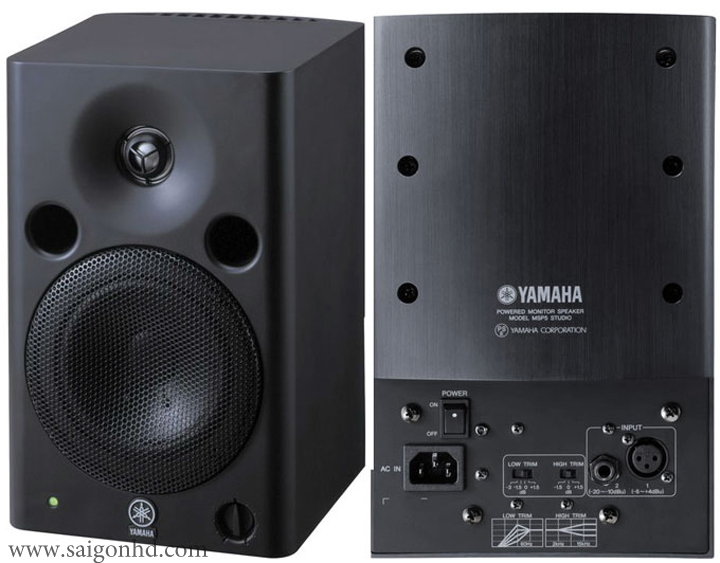

Professional Connectivity

The MSP5 STUDIO has a balanced XLRtype input for direct compatibility with professional equipment. Balanced lines are ideal if the speakers are to be placed at the end of long cable runs which, if unbalanced, might be susceptible to hum and induced noise. The MSP5 STUDIO also offers an unbalanced 1/4" phone jack connector.

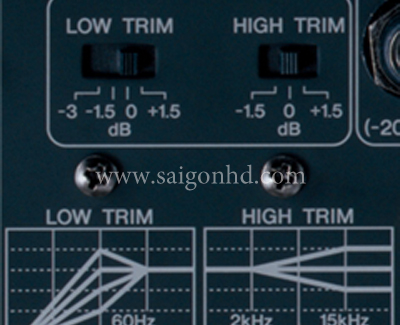

Trim Switches for Easy Room Matching

The MSP5 STUDIO is equipped with four position low and three position high trim switches that allow the system's response to be optimized for a wide range of acoustic environments.

Specifications of YAMAHA MSP5 STUDIO

• Speaker type: Biamp, 2-way powered speaker
• Frequency response -10dB: 50Hz-40kHz
• Components
• LF: 5" cone
• HF: 1.0" titanium dome
• Crossover: 2.5kHz
• Output power: LF: 40W, HF: 27W
• Maximum output level (1m; on axis): 101dB
• I/O connetcors: XLR-3-31 type, Phone
• Processors: High trim (15kHz; +1.5/0/-1.5dB), Low trim (60Hz; +1.5/0/-1.5/-3dB)
• Power consumption: 60W
• Magnetic shielding: Yes
• Flying and mounting hardware: 2x M8
• Dimensions (WxHxD): 179mm x 279mm x 208mm (7" x 11" x 8-1/4")
• Net weight: 7.9kg; 17.4lbs
• Accessories: Owner’s manual, AC power cord.
