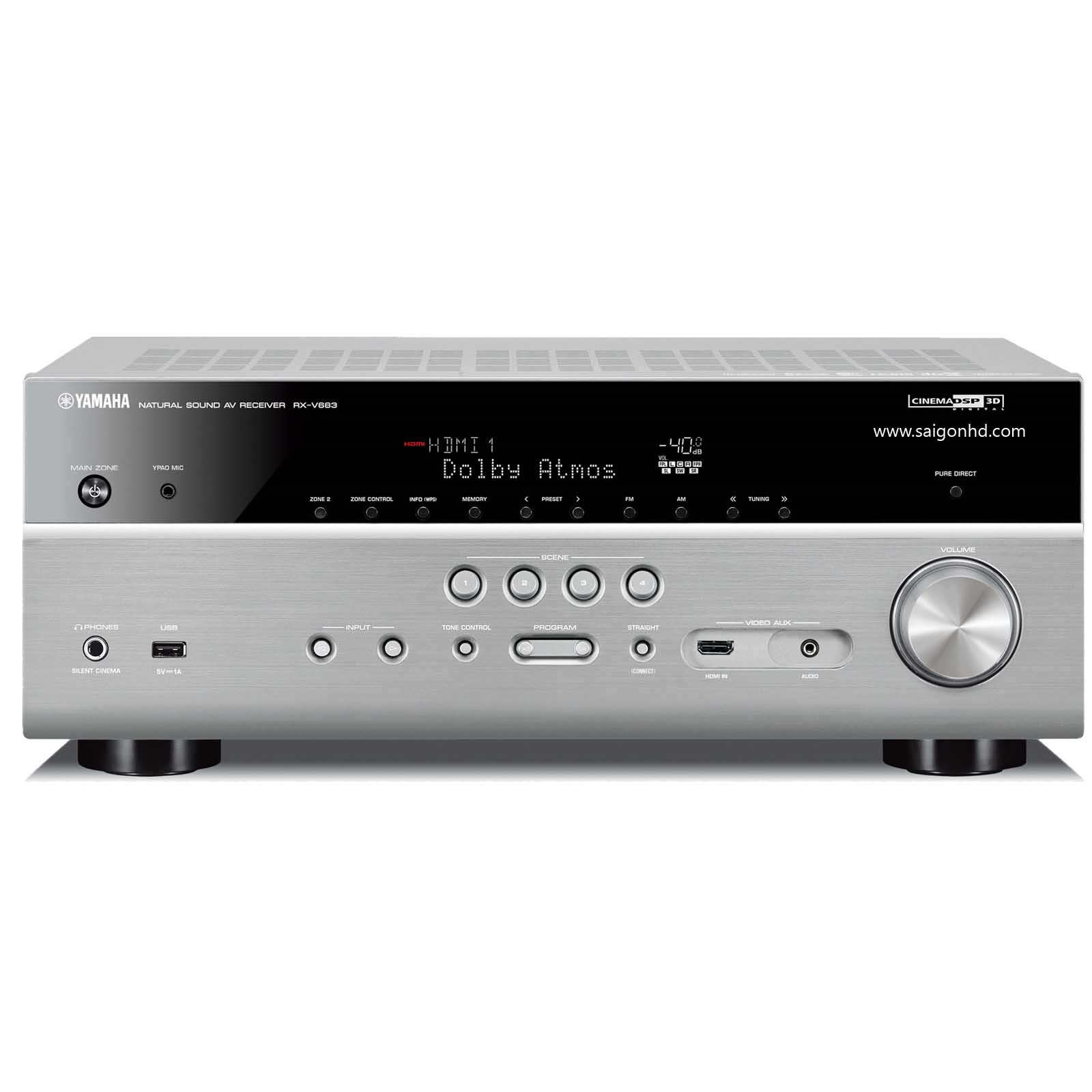

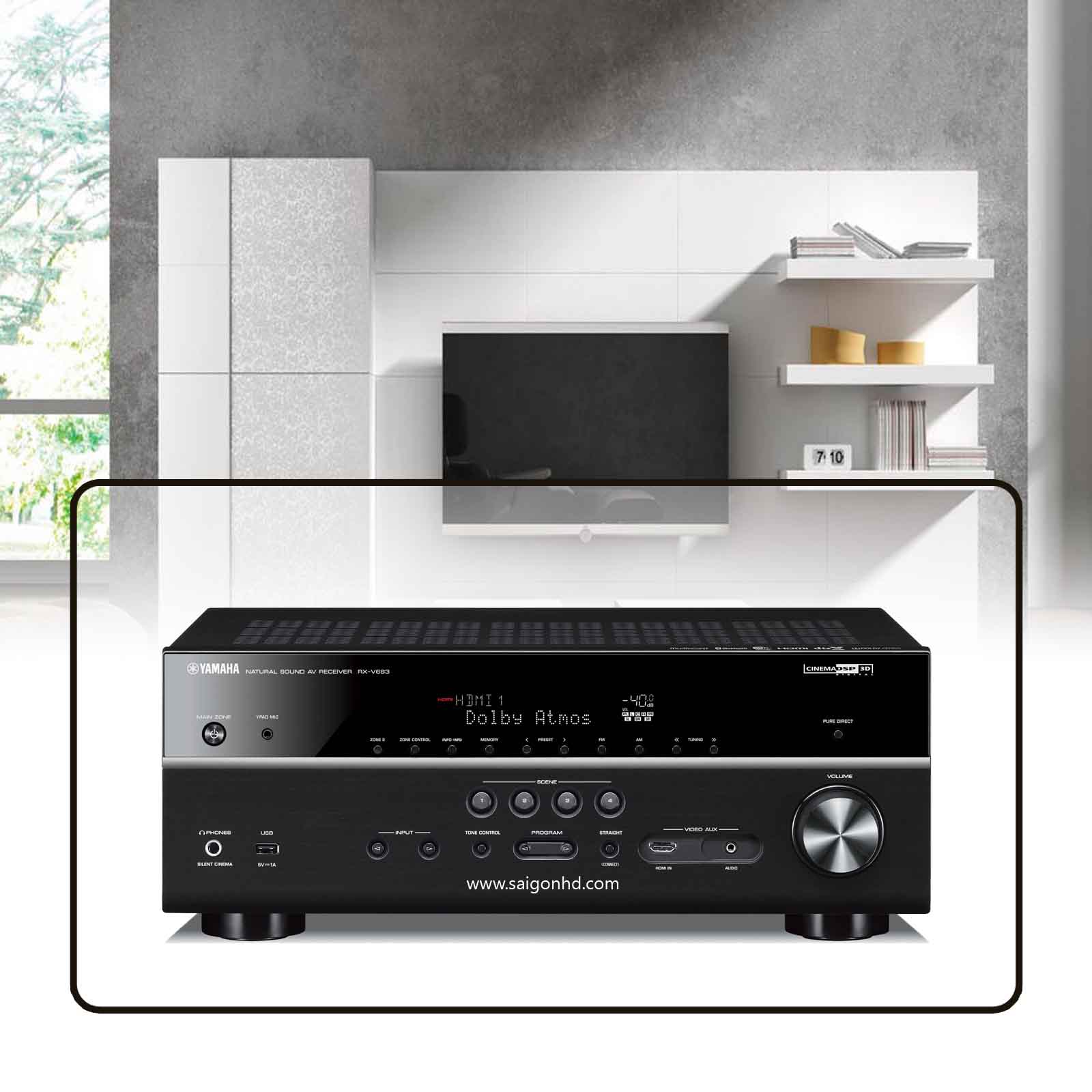

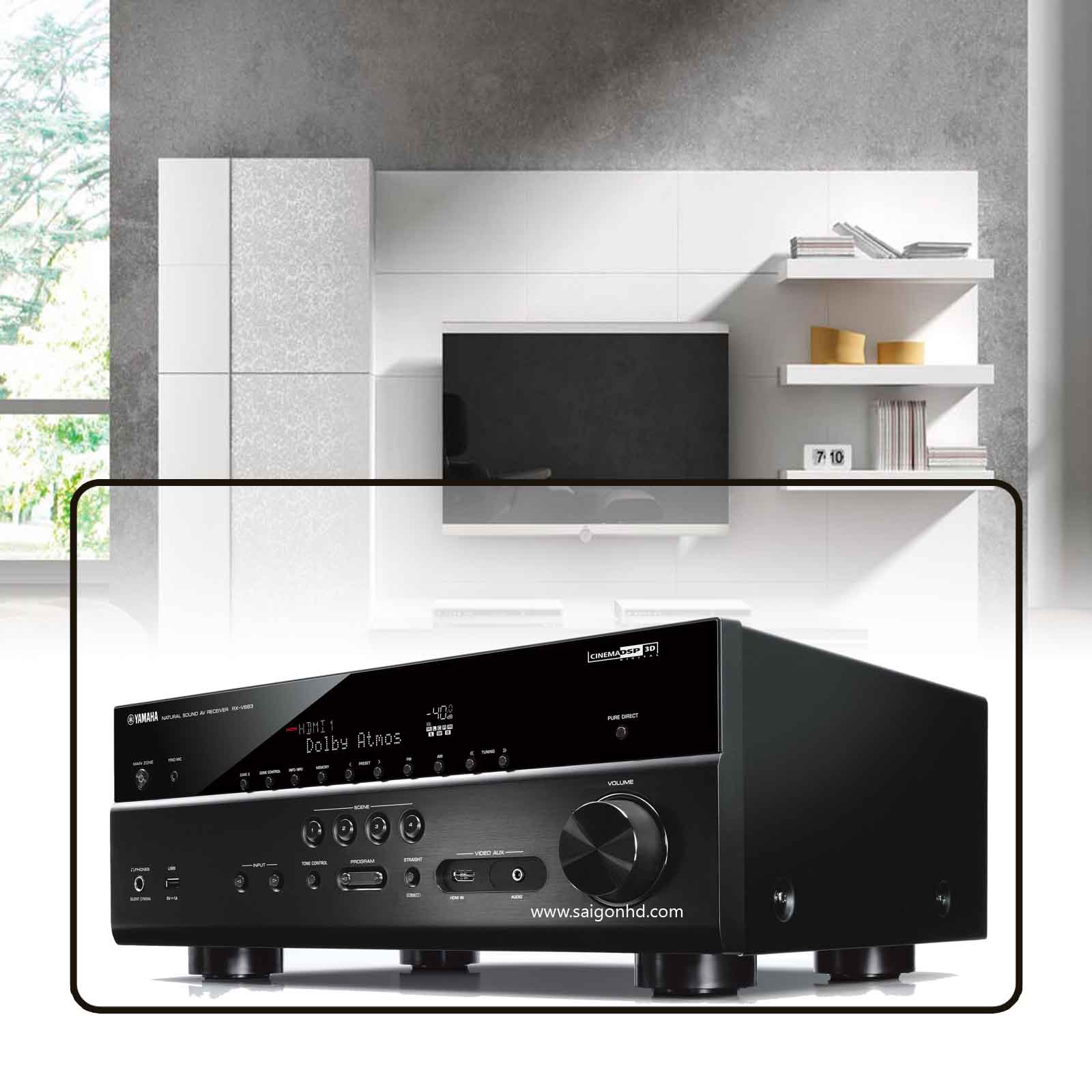

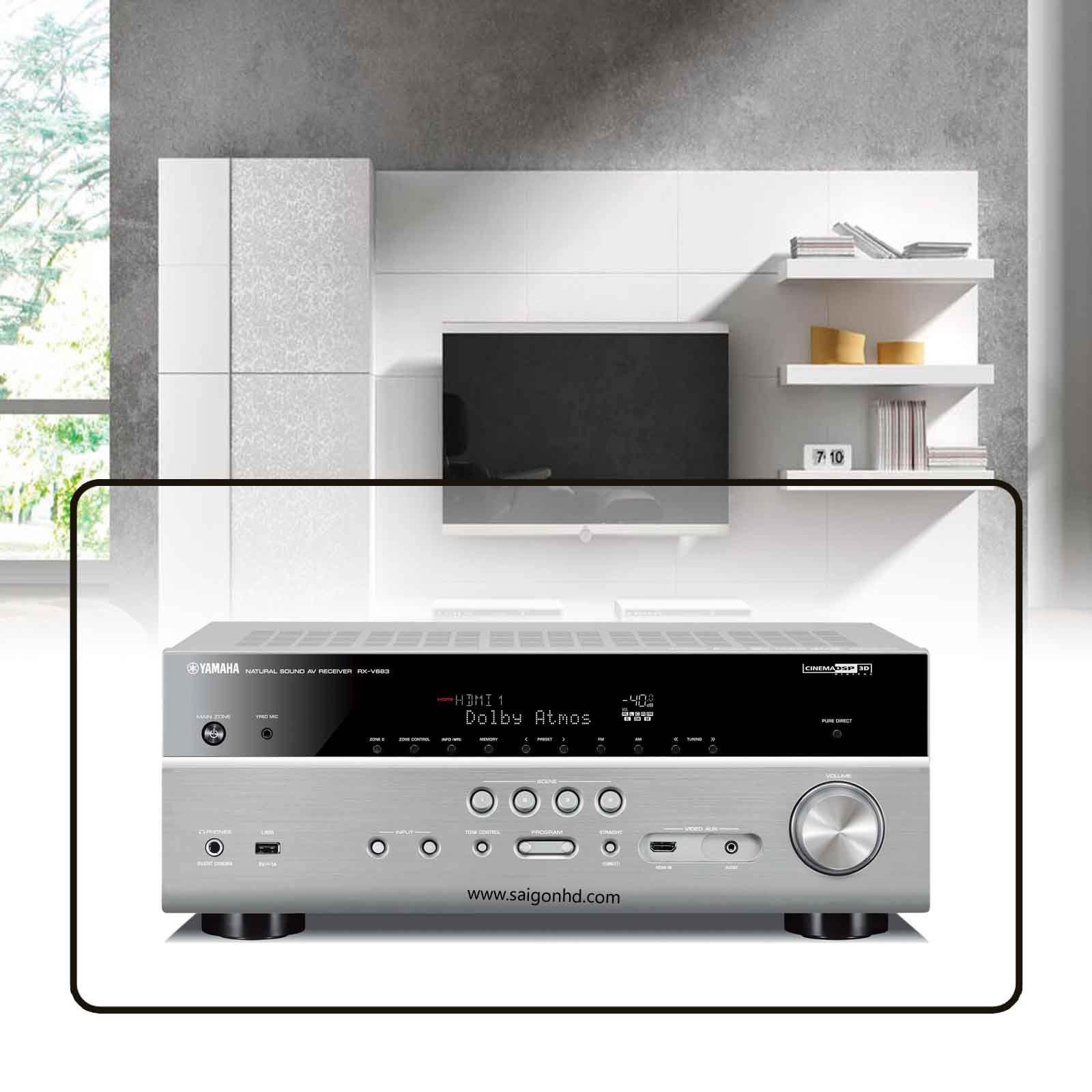

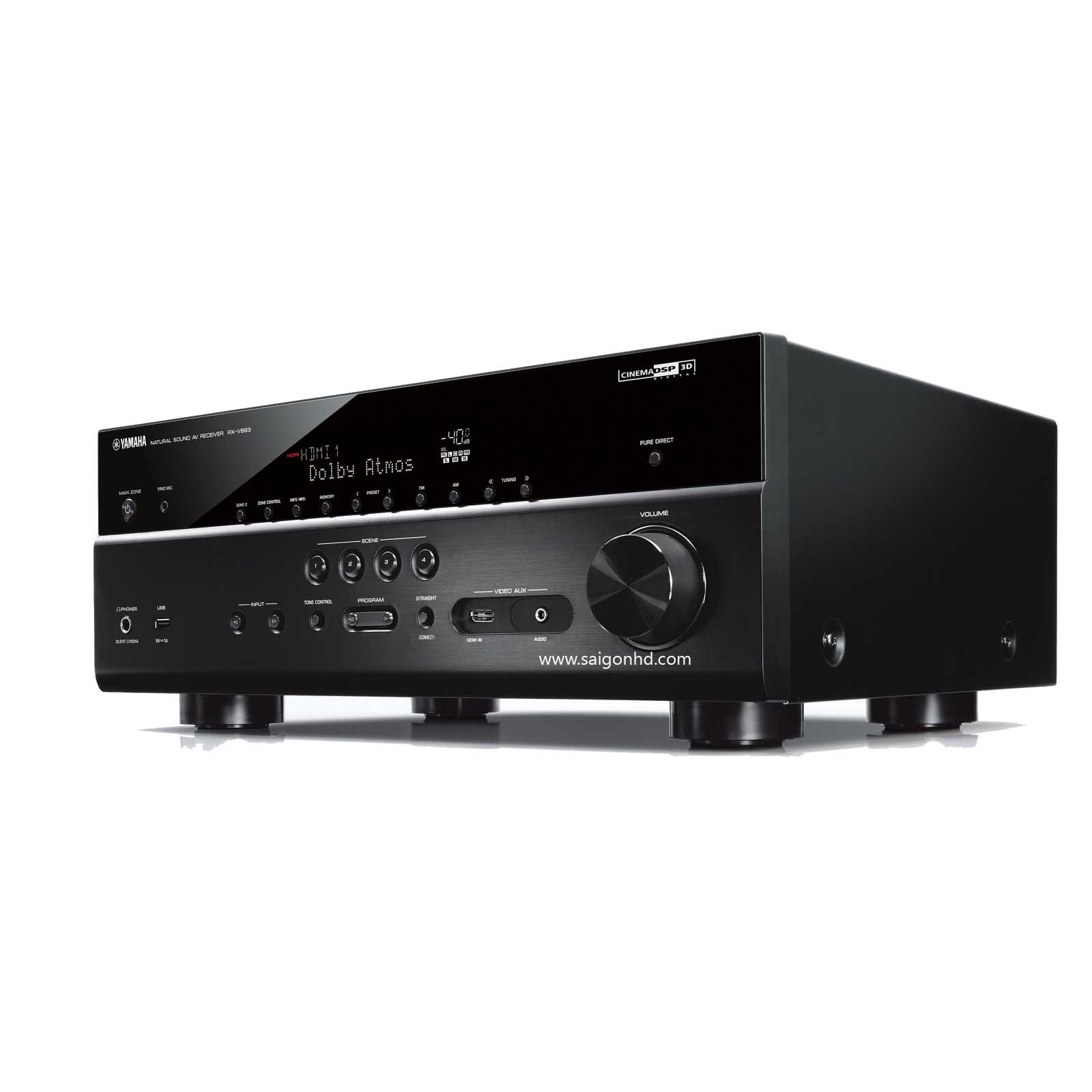

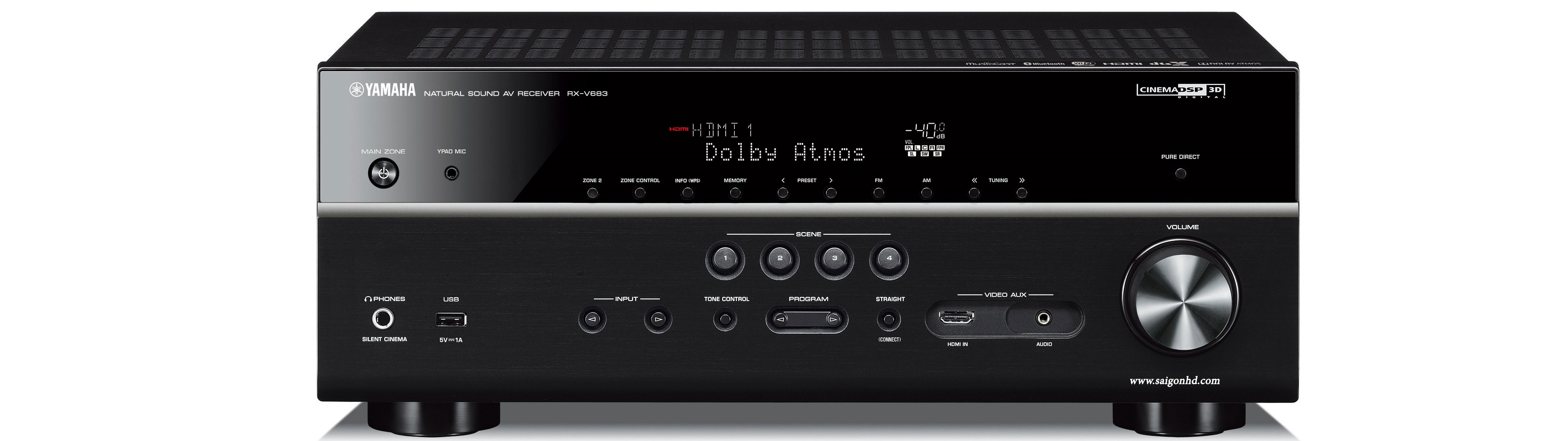

YAMAHA RX V683

7.2-channel AV receiver with versatile connectivity to take full advantage of the high AV quality.

YAMAHA RX V683 FEATUERS

MusicCast

Access all of your music with a simple app and wirelessly stream it throughout your home using your existing Wi-Fi® network.

Stream it all. Listen to Pandora®, Spotify, Napster®, SiriusXM Internet Radio, thousands* of free internet radio stations and the music stored on your smart devices and computers (TIDAL and Deezer available by firmware update, May 2017)

Wireless connectivity. All MusicCast products are fully loaded with Wi-Fi, Bluetooth and AirPlay®.

Expand to a whole home audio experience. When you’re ready, add MusicCast wireless speakers, sound bars or other devices in up to 9 other rooms and listen throughout your home.

No wires, easy installation. By using MusicCast, you don't need to fuss with placing wires through walls into other rooms.

Dolby Atmos® and DTS:X™

Experience dimension. These sound technologies transport you from an ordinary moment into an extraordinary experience with captivating, multidimensional sound that fills your room with amazing richness and depth. These sound technologies allow for music, people and objects to come alive in breathtaking detail and flow in precise choreography all around you, making you feel like you are right in the middle of the story.

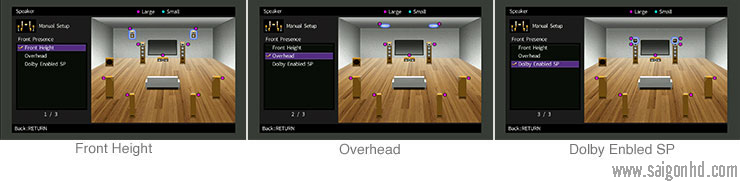

Dolby Atmos Speaker Pattern

Sound fields galore. Multiple placement patterns are available for presence speakers that support Dolby Atmos, creating a sound field that’s ideal for your setup. Any layout can be appropriately reproduced, including the three-dimensional space of CINEMA DSP as well as Dolby Atmos.

Bluetooth®

Play your favorite streaming service. This AV receiver is equipped with Bluetooth functionality to let you enjoy easy wireless music playback from smartphones and other devices. The Compressed Music Enhancer from Yamaha is now optimized for Bluetoothaudio transmissions to ensure that your music will have vivid, lively sound quality during wireless playback. You can stream music from the RX-V683 to Bluetooth headphones for private listening or to Bluetooth speakers.

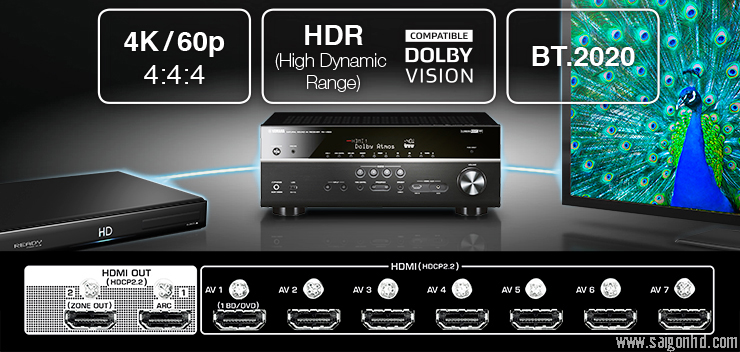

Full 4K Ultra HD Support

This AV receiver completely supports with latest HDMI® standards. Thanks to transmission of 4K video at 60 frames per second pass-through, you can fully enjoy the high definition video quality of 4K without degradation. It also adheres to the HDCP 2.2 copyright protection standard for 4K video transmission. It also supports HDR (high dynamic range) Video including Dolby Vision™ and Hybrid Log-Gamma which provides incredible contrast, smooth tone and rich, bright colors. Furthermore it supports the wider color gamut of BT.2020 pass-through. This AV receiver is also compatible with 3D, Audio Return Channel and CEC for easy operation.

*Dolby Vision and Hybrid Log-Gamma will be available via future firmware update.

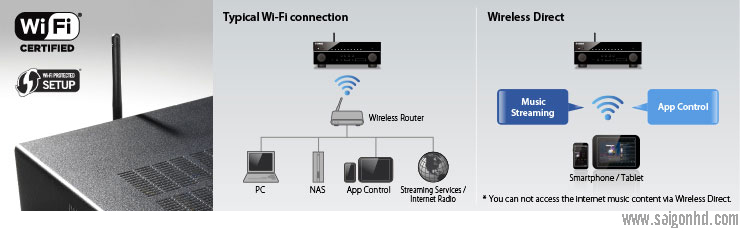

Wi-Fi Compatible

Stream simply. Built-in Wi-Fi allows for a connection with your wireless router, greatly simplifying system connections for enjoying networked audio (PC/NAS) and music streaming services. If a Wi-Fi router is not available, the unique Wireless Direct feature not only allows you to stream music directly from your smartphone or tablet via the AV Controller App, AirPlay® etc., but also allows for control of the AV receiver as well.

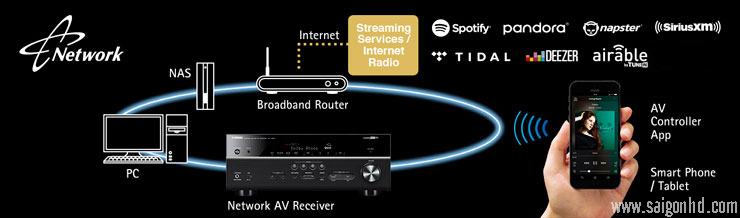

Network Functions

Access more. This AV receiver provides a variety of network functions that enable you to access more sources and also enhance operation. You can connect the AV receiver to your home network or internet to enjoy Internet radio, Spotify, Pandora® or music stored on a NAS and home PC. The AV Controller app (from iTunes® or Google Play) lets you control various functions from your iPod®, iPhone®, iPad® or Android™ phones/tablets.

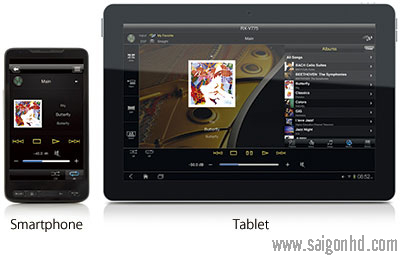

AV Controller App

Easy and convenient operation. This AV receiver lets you use the Yamaha AV Controller App that is downloadable from iTunes, Google Play or the Amazon Appstore to control the power, volume, input selections, DSP modes and much, much more from an iPhone or Android device. Customize the interface by hiding unused icons and renaming functions. Includes 23 different languages. A tablet version is also available.

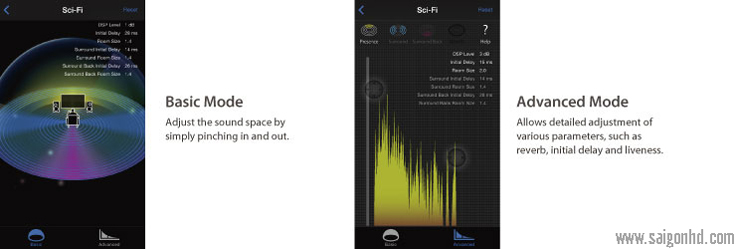

DSP Adjustment

Create sound fields at home. This AV receiver is equipped with a variety of sound programs that utilize original DSP technologies from Yamaha. These sound programs allow you to easily create sound fields like actual movie theaters or concert halls. It is now possible to use the AV Controller app to adjust the DSP parameters of your favorite movie or music album.

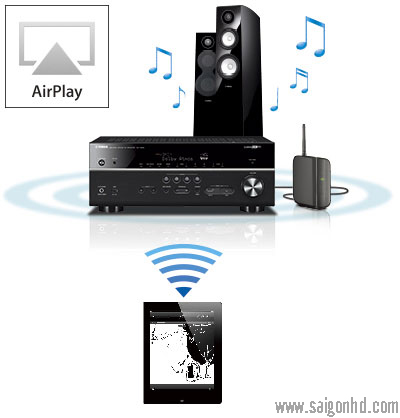

AirPlay

iCompatible. This AV receiver supports AirPlay, which means it can accept wireless music streaming from iPod, iPhone, iPad, as well as from iTunes on a Mac® or PC. This makes it easy to enjoy music from your mobile device or computer through your home theater system. You can view metadata such as song title, artist name as well as album art inside the AV receiver's on-screen display.

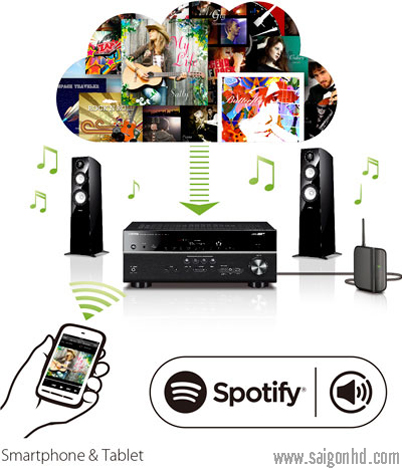

Spotify Connect

Millions of songs. With the Spotify app on your smartphone, you have instant access to millions of songs. Now you can stream those songs to your networked Yamaha AV receiver by using Spotify Connect. Just hit play to start streaming music. When you listen to Spotify outside on your smartphone or tablet and come inside, the song immediately streams to your Yamaha AV receiver allowing no interruption to your music playback. You can also personalize playlists and receive phone calls while listening to music on Spotify.

The Spotify app and premium account are required. Visit www.spotify.com for more details.

Try Spotify Premium for free on your Yamaha home entertainment system for 30 days. Visit http://spotify.com/yamaha for more details.

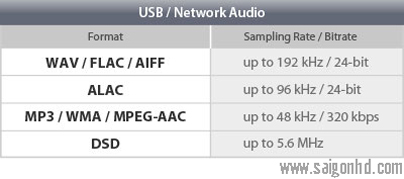

Codec Support

Codec compatible. This AV receiver is compatible with many audio formats such as Dolby® True HD and DTS-HD Master Audio™. It is also compatible with high-resolution audio codecs such as DSD/AIFF/FLAC/WAV/Apple® Lossless. You will enjoy the excellent sound quality of these various high-resolution audio codecs from the USB input on the front panel or from network connected devices.

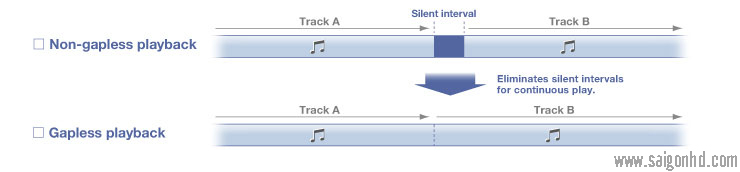

Gapless Playback

No interruptions. Many live and classical albums have no gaps in the music. Gapless playback ensures that there are no pauses between audio files. This provides playback with no interruptions, the way it was meant to be heard. Compatible with WAV, FLAC and ALAC file formats, and input from USB/PC/NAS.

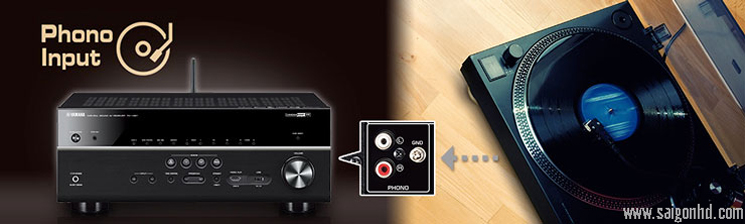

Phono

Keep collecting. Enjoy music from your vinyl collection through the phono input terminals.

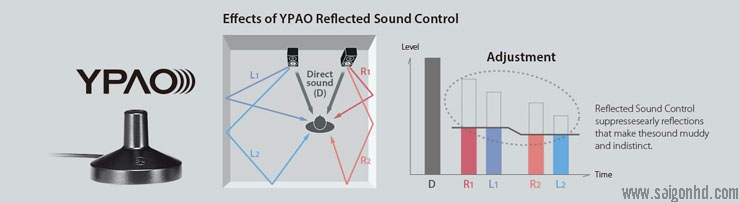

YPAO™-R.S.C. (Reflected Sound Control)

Advanced sound optimization. YPAO - Reflected Sound Control analyzes room acoustics and measures various speaker characteristics, then calibrates audio parameters to achieve optimum sound. It employs Reflected Sound Control to correct early reflections for studio-quality sound. It also provides DSP Effect Normalization, which varies the CINEMA DSP parameters according to the reflected sounds.

Rich Bass Reproduction

Feel your lows. This exclusive low-range enhancement technology delivers richer bass than you would expect from smaller sized speakers while maintaining good localization and sound balance even with compact front speakers. When a subwoofer is used, it improves the volume of the entire low range of the speaker system, not only the front speakers, but also enhancing the bass from the subwoofer. You'll enjoy video and music with sound that has exceptional power and presence.

Total Purity

Enjoy fine sound quality. The Total Purity Concept, which Yamaha has been cultivating for many years, encompasses high drive amp technology, high purity preamplification, anti-vibration technology and independent pure power supplies. All models have fully discrete power amplifiers that help minimize distortion. They also adopt pure independent power supplies, allowing dedicated power supplies for the analog and digital circuitry to prevent digital noise from affecting analog circuitry. The anti-vibration heat sinks are designed to suppress vibration from transistors and sound pressure. Independent power supplies for the DACs are designed to further eliminate noise on certain models. Down to every detail, these AV receivers are designed with full emphasis on the highest possible sound quality.

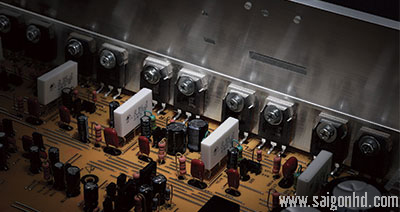

Discrete Amp Configuration

Enjoy quality sound. This AV receiver was designed with a strong focus on achieving exceptionally high sound clarity. It employs a discrete amp configuration and a low-jitter PLL circuit, which contribute to its excellent audio performance.

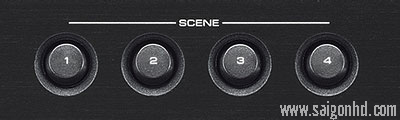

SCENE for One-Touch Start

One-touch start. Pressing a SCENE button powers on the AV receiver and selects the input source and DSP mode. You can re-set the buttons for different sources by selecting a source and DSP mode, then pressing a SCENE button for more than three seconds.

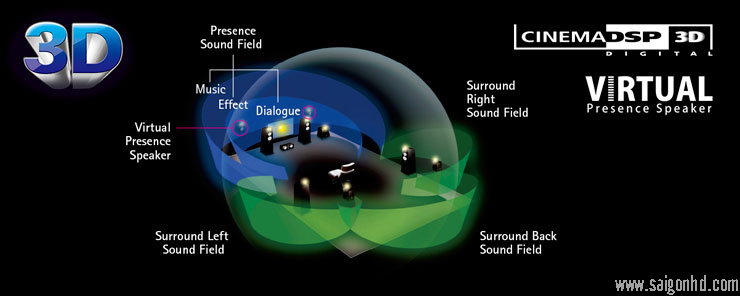

Virtual Presence Speaker

Wide, high and dense sound. CINEMA DSP 3D provides a wide, high and dense sound field. HD Audio format decoding lets you enjoy HD Audio sources. Virtual Presence Speaker delivers three-dimensional sound without the actual use of presence speakers.

Virtual CINEMA FRONT

Even when it is impossible to install surround speakers behind the listening position, Virtual CINEMA DSP reproduces virtual 7-channel surround sound filled with realism, from only two front speakers. The Virtual CINEMA FRONT feature lets you placSurround from the front. Even when it is impossible to install surround speakers behind the listening position, you will enjoy virtual 5-channel surround sound with all of the speakers placed in the front of the room. This is ideal for those who can't or prefer not to install speakers in the rear of the room.e two surround speakers and a center speaker at the front to enjoy virtual 7-channel surround sound with even higher quality and resolution, as well as superior rear virtual sound localization. Adding two additional front presence speakers provides a three-dimensional sound field that gives you a feeling of its height and depth and of the vertical movement of the sound. You get more flexibility to arrange your speakers inside the room, along with easy enjoyment of high quality surround sound.

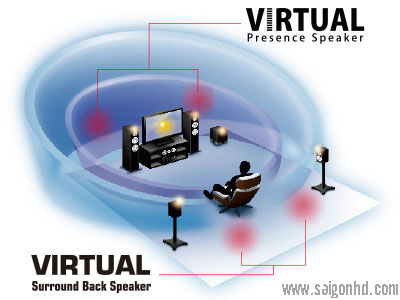

Virtual Presence Speaker and Virtual Surround Back Speaker

Virtually surround yourself. With the power of CINEMA DSP 3D, the Virtual Presence Speaker function makes full use of center and surround speakers to create audible information from where presence (height) speakers are normally installed. In addition, this model also features a Virtual Surround Back Speaker function. Even without using surround back speakers, you can experience more natural, lifelike sound from behind you without physical speakers being installed in the surround back area of the listening environment.

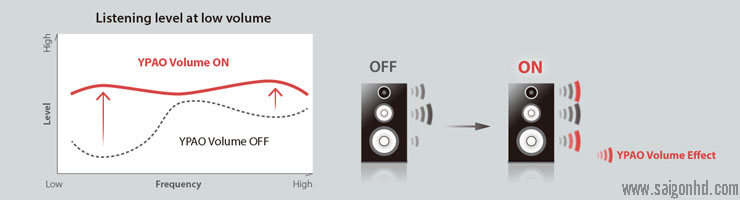

YPAO Volume

Hear everything low. Human ears have less sensitivity to high and low frequencies, especially at lower volumes. YPAO Volume applies loudness EQ correction to automatically adjust high and low frequency levels as volume changes. Using the YPAO measurement results, EQ correction is optimized to your system settings and listening environment.

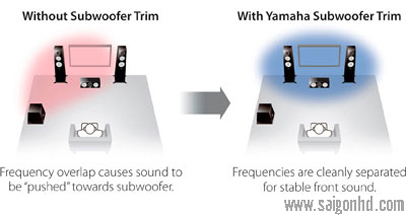

Subwoofer Trim

Improved sound imaging. The Subwoofer Trim Control enhances the low frequencies by avoiding overlap with the front speaker output. This will result in a cleaner, more focused soundstage while providing a seamless frequency response. When subwoofer frequency overlap occurs in conventional systems, the overall sound is “pushed” toward the subwoofer. Subwoofer Trim Control takes care of this by separating the low subwoofer frequencies cleanly, thus stabilizing the front stage while providing a well-balanced enhanced bass sound.

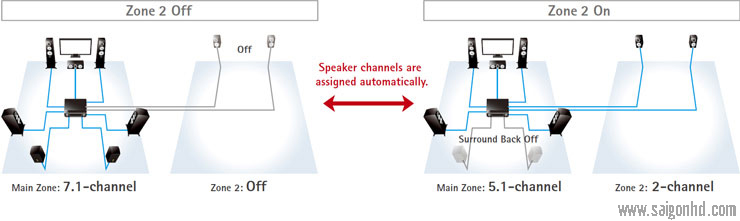

Intelligent Amp Assign

Intelligent design. Intelligent Amp Assign automatically assigns amplifier channels to certain speakers, depending on what speaker layout is selected. For example, in a 7.1-channel system, when Zone 2 is turned off, all 7.1-channels will be used in the Main Zone. However, when Zone 2 is powered on, the power to the two surround back channels will automatically be redirected to the two speakers in Zone 2 and the Main Zone will receive 5.1-channels of power. Similarly, when CINEMA DSP 3D is on, the two Front Presence speakers will be powered and not the two surround back speakers. When CINEMA DSP 3D is off, this situation is reversed. Thanks to Intelligent Amp Assign, there’s no need to switch the speaker cables on the rear of the AV receiver.

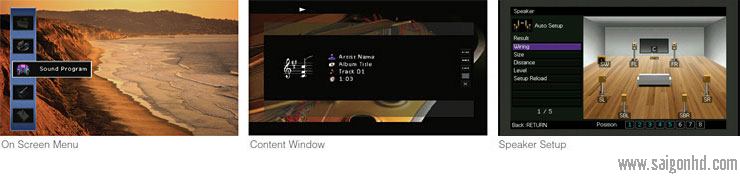

Advanced Graphical User Interface

Multilingual user interface. The latest graphical user interface from Yamaha has a high-resolution display with clear, easy-to-use menus and also includes a selectable status bar that shows input source, volume level, DSP mode and audio format. The GUI provides a choice of eight languages: English, French, German, Spanish, Italian, Russian, Japanese and Chinese and can be displayed over both normal and 3D pictures.

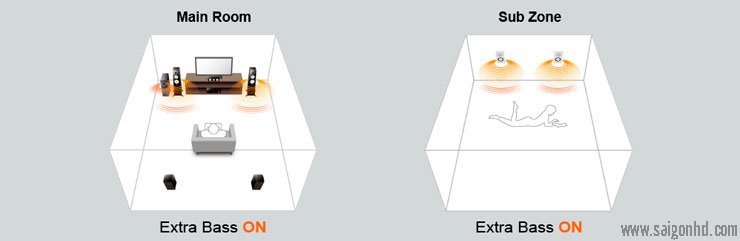

Zone 2 Extra Bass

Use the Extra Bass feature to amplify bass tones, not just in your main room but also on systems in Zone 2. Even with compact or in-wall speakers which typically lack bass, you’ll hear all your sources with powerful bass sound.

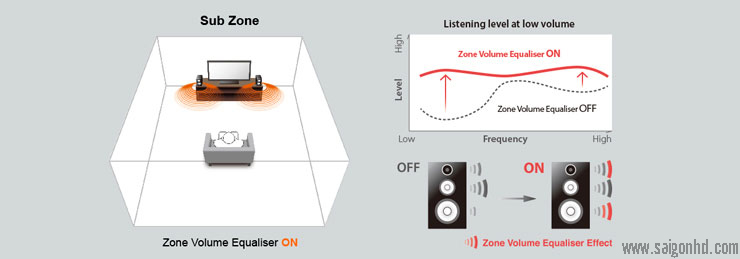

Zone 2 Volume Equalizer

Automatically adjusts bass and treble balance to match the volume on systems in Zone 2. Enjoy movies and music with a natural sound quality balance even at low volumes.

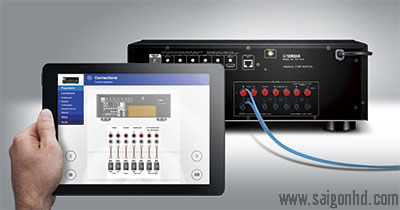

AV Setup Guide

Install with ease. The AV Setup Guide makes it much easier to perform the set up process with the Yamaha AV receiver. This app assists you with cable connections between the AV receiver and source devices. Additionally, it guides you through various settings such as speaker connections, TV and source device connections and power amplifier assignments. System illustrations and actual AV receiver images help you understand how to make the connections between devices. It is available in multiple languages and is designed for iOS and Android tablets.

ECO Mode

Go green. When ECO mode is turned on it can reduce power consumption by about 20 percent.

Selectable Standby

Sleep mode. Auto Power Standby lets you save energy by selecting to turn off the power after 20 minutes, 2, 4, 8 or 12 hours.

Yamaha Eco-Label

Yamaha Eco-Label is a mark that certifies products of high environmental performance.

Specifications of YAMAHA RX V683

• Channel : 7.2
• Rated Output Power (1kHz, 2ch driven) : 105 W (8 ohms, 0.9% THD)
• Rated Output Power (20Hz-20kHz, 2ch driven) : 90 W (8 ohms, 0.06% THD)
• Maximum Effective Output Power (1kHz, 1ch driven) (JEITA) : 150 W (8 ohms, 10% THD)
• Dynamic Power / Ch (Front L/R, 8/6/4/2 ohms) : 125 / 165 / 190 / 235 W
• CINEMA DSP : Yes (3D)
• DSP Programs : 17
• Dialog Level Adjustment : Yes
• Virtual Presence Speaker : Yes
• Virtual Surround Back Speaker : Yes
• Dialogue Lift : Yes (no presence speakers required)
• SILENT CINEMA / Virtual CINEMA DSP : Yes (Virtual CINEMA FRONT)
• Dolby Atmos : Yes
• Dolby TrueHD : Yes
• Dolby Digital Plus : Yes
• Dolby Surround : Yes
• DTS:X : Yes
• DTS-HD Master Audio : Yes
• Pure Direct : Yes (with video on mode)
• Compressed Music Enhancer : Yes (including for Bluetooth®)
• YPAO sound optimization : Yes (R.S.C.)
• YPAO Volume : Yes
• Adaptive DRC (Dynamic Range Control) : Yes
• Initial Volume & Maximum Volume Setting : Yes
• Bi-amp capability : Yes
• Audio Delay : Yes (0-500 ms)
• 192kHz / 24-bit DACs for all channels : Yes (Burr-Brown)
• 4K Ultra HD Pass-through and upscaling : Yes (4K / 60p, 4:4:4)
• HDMI 3D passthrough : Yes
• HDMI Audio Return Channel : Yes
• HDMI upscaling : Yes (Analog to HDMI® / HDMI to HDMI)
• Deep Color / x.v.Color / 24Hz Refresh Rate / Auto Lip-Sync : Yes

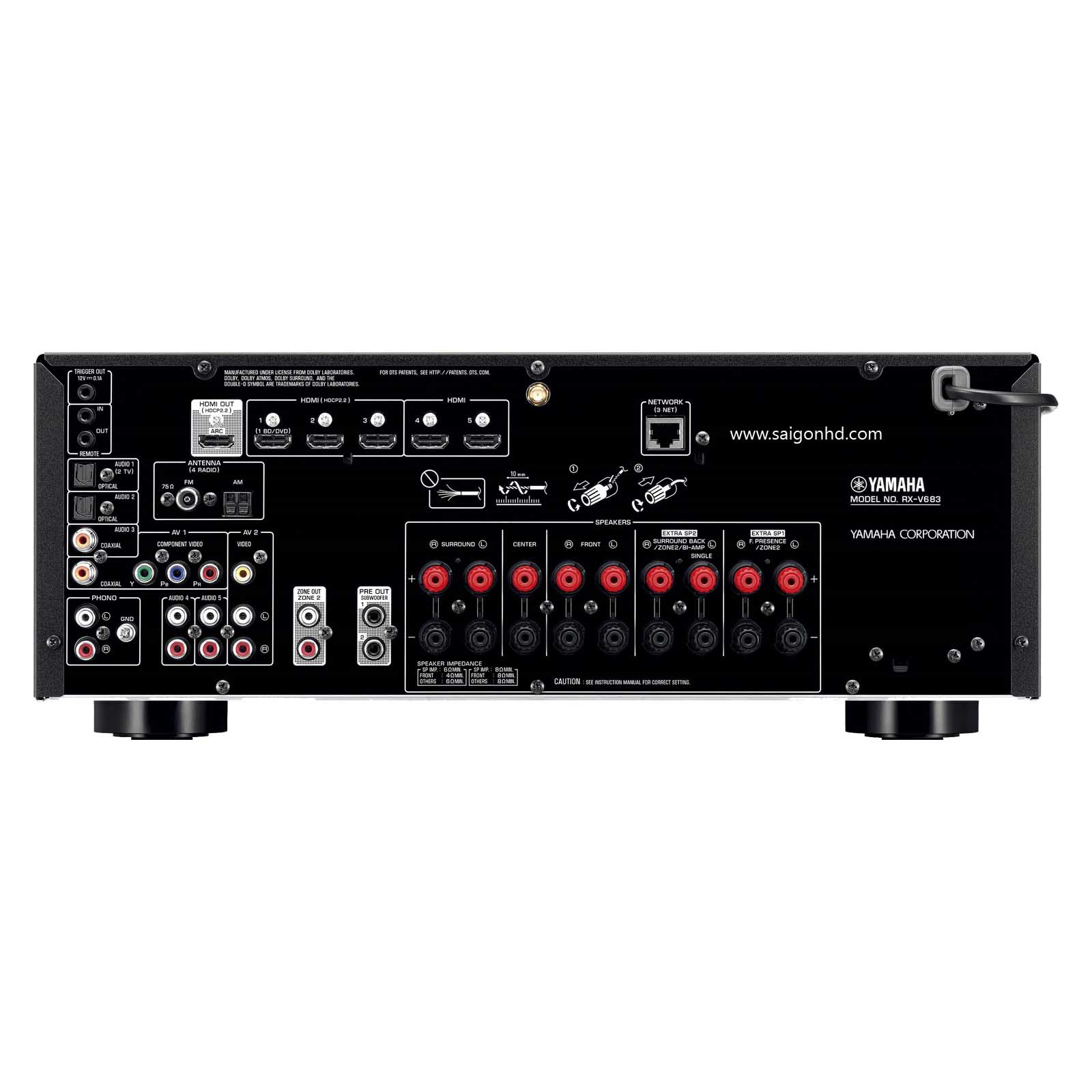

• HDMI Input/Output : 6 / 1 (HDCP2.2, HDR10 / Dolby Vision™ / HLG and BT.2020 compatible)
• HDMI CEC : Yes (SCENE, Device Control)
• USB Input : USB Memory, Portable Audio Player
• Network Port : Yes
• Front AV Input : HDMI / USB / mini-jack
• Digital Audio Input/Output: Optical : 2 / 0
• Digital Audio Input/Output: Coaxial : 2 / 0
• Analog Audio Input/Output : 5 (front 1) / 0
• Composite Video Input/Output : 1 / 0
• Preout : Subwoofer (2 x mono)
• Headphone Output : Yes
• Wi-Fi : Yes (with Wireless Direct)
• AirPlay : Yes
• Bluetooth : Yes (SBC / AAC)
• Phono Input : Yes
• Component Video Input/Output : 1 / 0
• FM/AM Tuner : Yes
• On-screen display : Graphical User Inter face
• SCENE : SCENE (4 sets)
• App Control : Yes (iPhone® / iPad® / Android™ phone / tablet)
• Web Browser Control : Yes

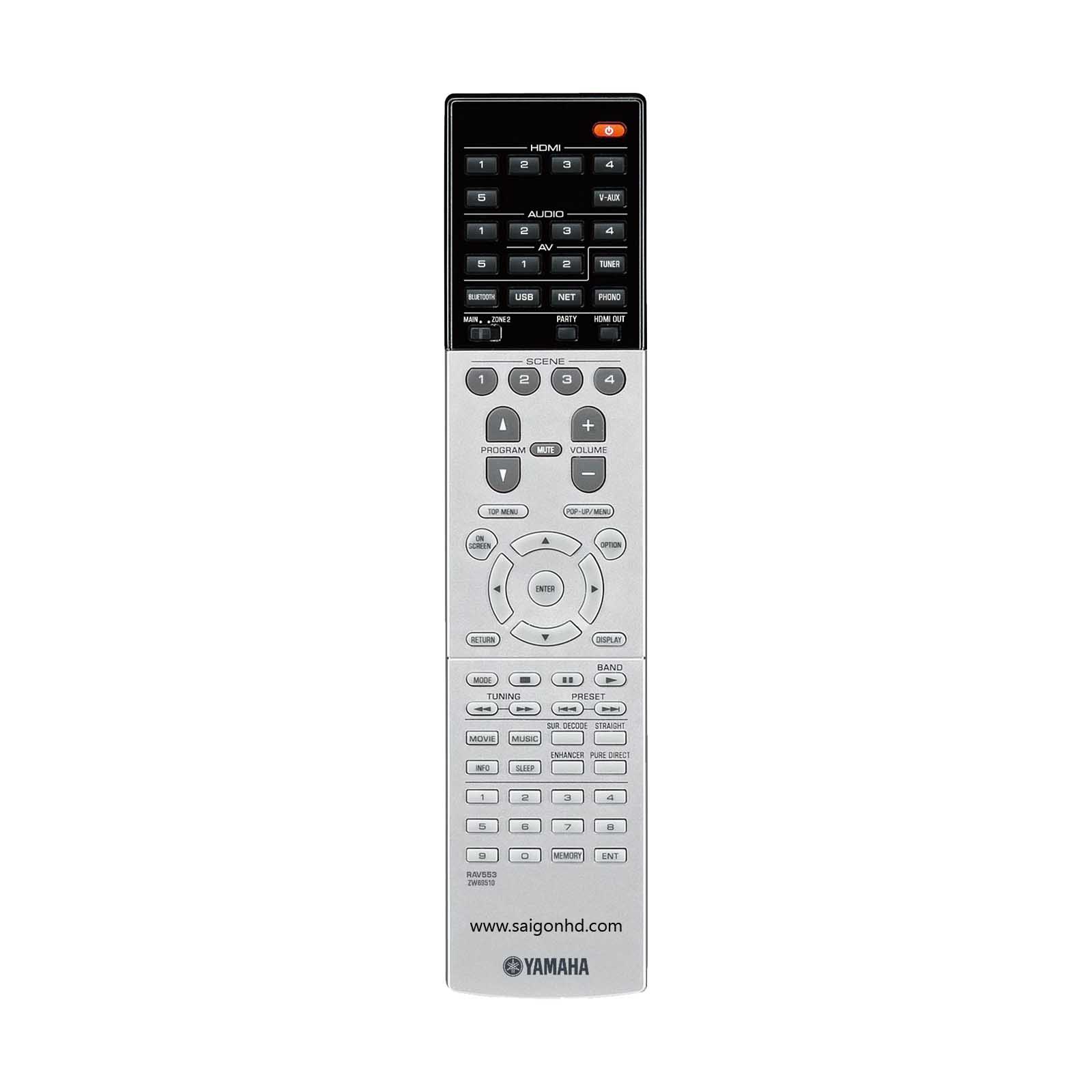

• Remote Control Unit : Yes
• Zone 2 Audio Output : Preout
• Powered Zone : Zone 2
• +12V Trigger Output : 1
• Remote (IR) Input/Output : 1 / 1
• Party Mode : Yes
• Standby Power Consumption (IR only) : ≤0.1 W
• Auto Power Standby : Yes
• ECO mode : Yes
• Dimensions (W x H x D) : 17-1/8" x 6-3/4" x 14-7/8" (17-1/8" x 9-1/4" x 14-7/8" with antenna up)
• Weight : 22 lbs.
