YAMAHA VXS3F

 YAMAHA VXS3F BLACK

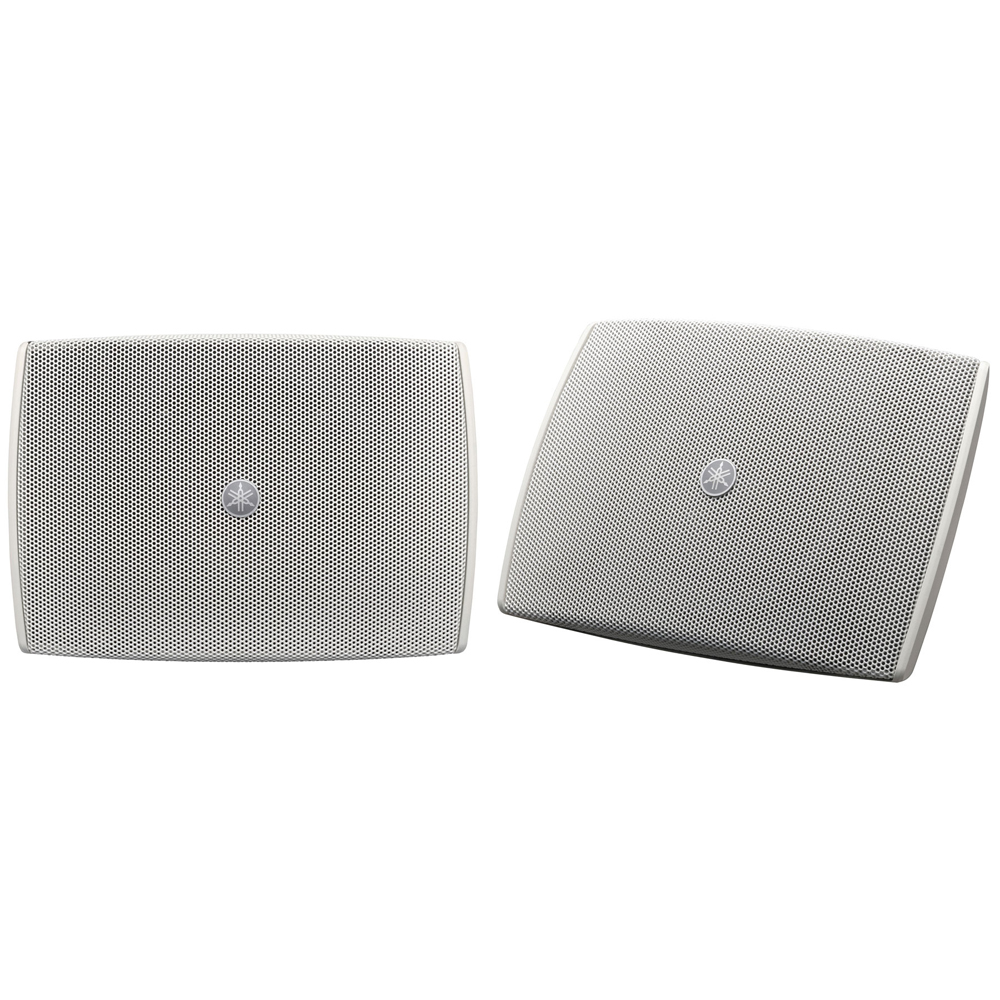

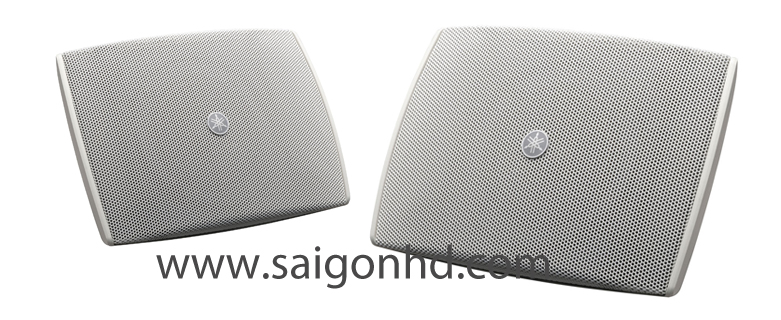

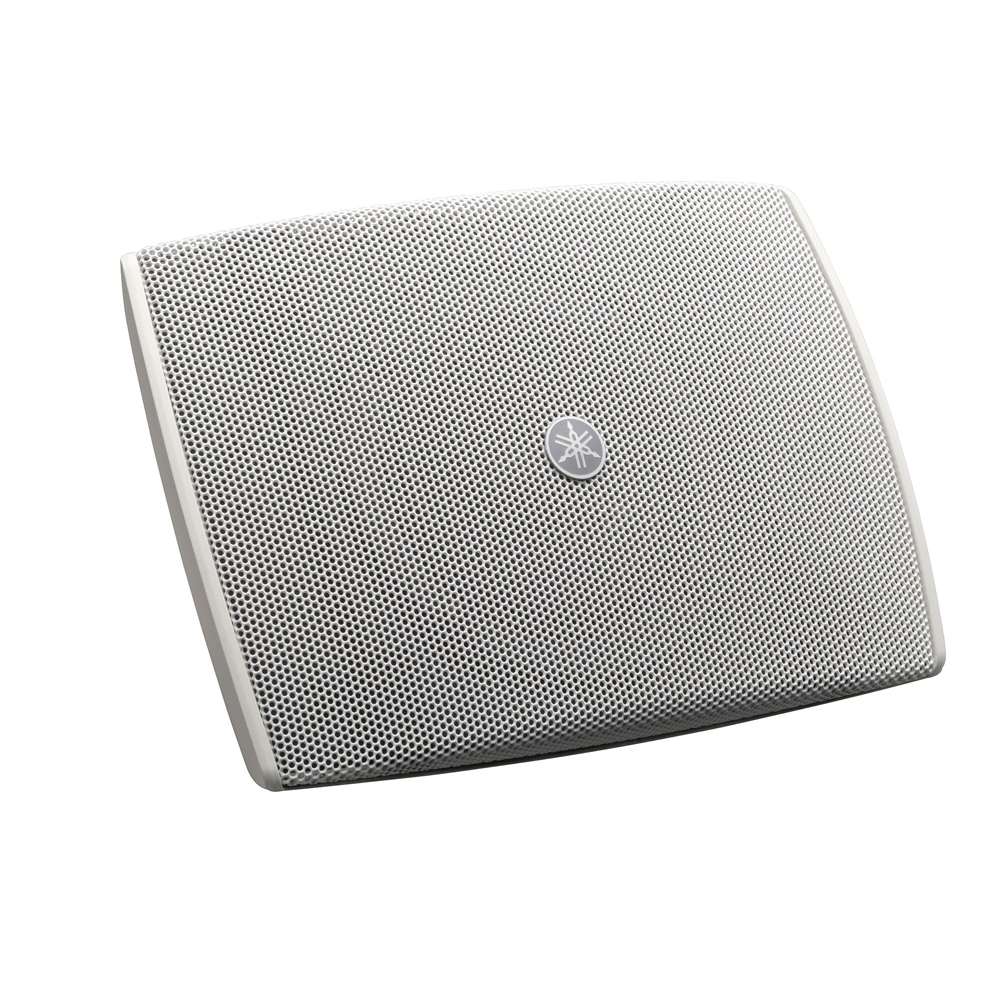

YAMAHA VXS3F WHITE

Surface mount speakers can play an integral role in both the visual and auditory atmosphere you choose to create in your commercial space. The sleek curves and attractive, minimalist design of Yamaha's VXS3F and VXS3FT speakers make them easily adaptable to any commercial environment seeking a unique, subtle complement to the overall aesthetic. And their performance is just as impressive; featuring a speaker unit optimally tuned for high-resolution  music playback, and a flexible, intuitive design, these speakers offer everyone involved in the installation process—from installers and owners to end users— a simple, streamlined solution to easily integrate high-quality audio into an impressive variety of restaurant, retail, or professional environments. By combining this subtle, attractive design with the strict attention to sound quality that has earned Yamaha worldwide renown, VXS3F and VXS3FT surface mount speakers prove that style and substance aren't always mutually exclusive.

VXS3F Surface-mount Speaker, Compact surface-mount speakers elegantly blend into any interior décor (Low-impedance models).

• 3.5” full-range speaker units
• Low-impedance model for small installations
• Attractive, discreet design complements elegant décor
• Dedicated design-enhancing bracket included
• Acoustic design for sophisticated, natural reproduction
• Individual speakers cover a wide angle
• Paintable enclosures and grilles
• Black and white models available
• 1.1kg (2.4 lbs)*, W 184mm x H 130mm x D 134 mm (W 7.3" x H 5.1" x D 5.3")*

*Including bracket

YAMAHA VXS3F FEATURE

Attractive, Discreet Design for Elegant Spaces

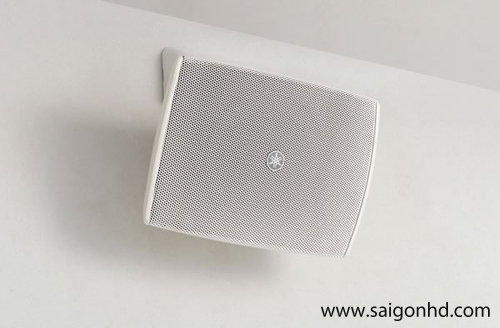

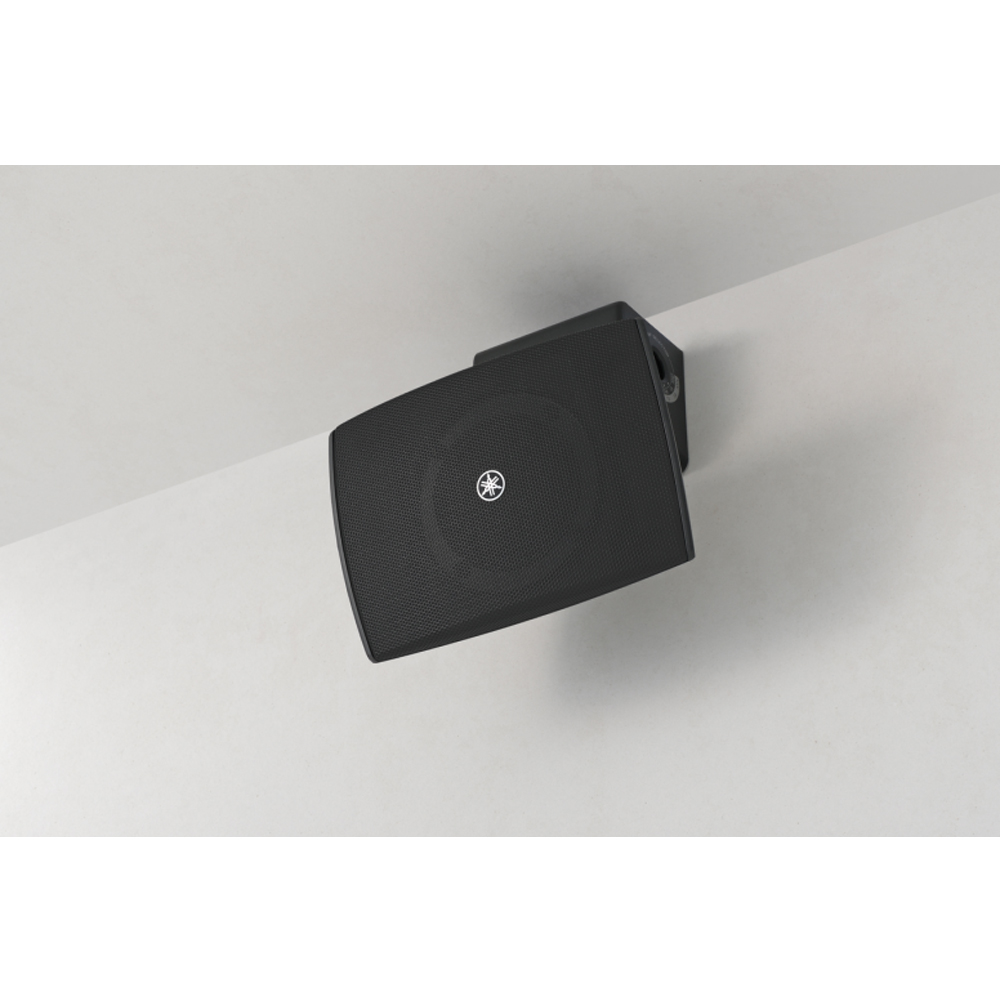

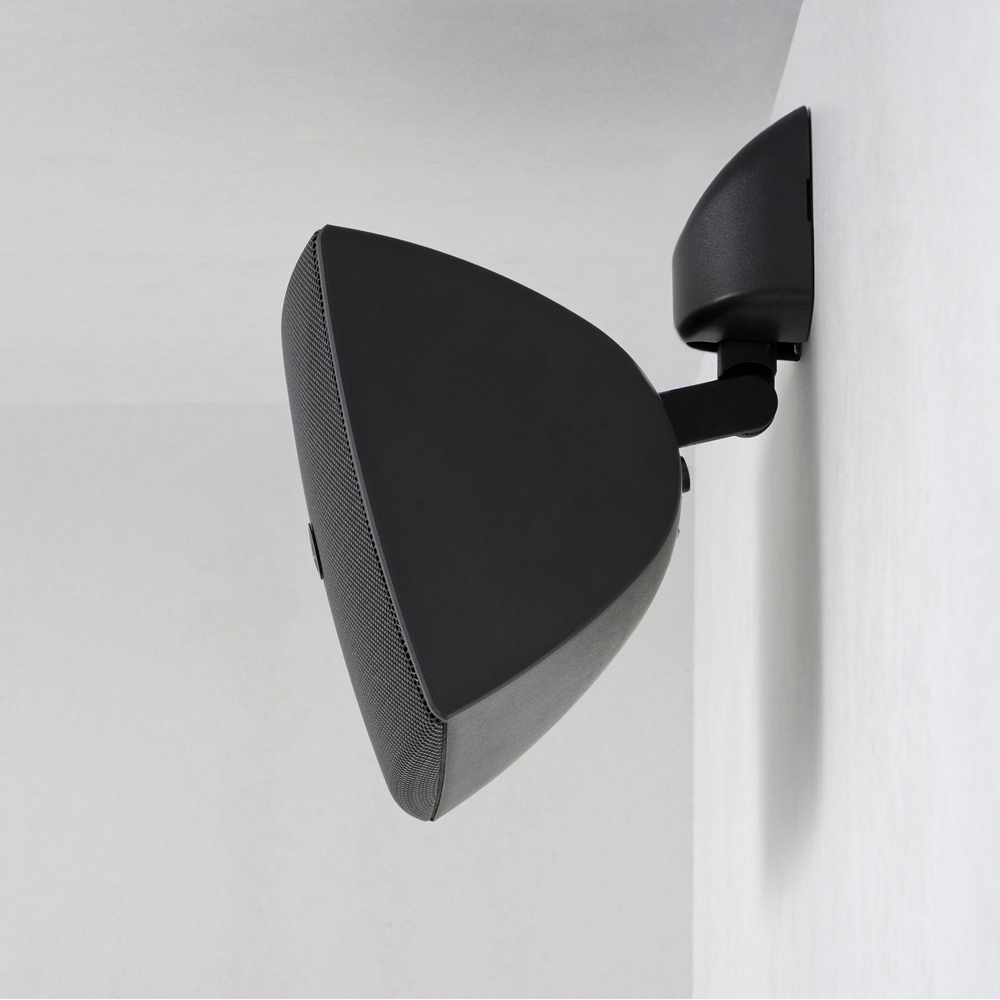

The polished presence of the VXS3F or VXS3FT can add stylish appeal to any environment. These speakers present a slim installed profile that appears to float in space, blending easily with just about any décor. The size of the speaker enclosure has been reduced as much as possible, while smoothly flowing lines and surfaces add visual charisma.

Sophisticated Natural Sound

The VXS3F and VXS3FT deliver refined, naturally pleasing sound. In order to provide richly expressive music playback even at low volume, Yamaha has applied years of accumulated skill and experience in tuning the system for the most natural reproduction of musical instruments as well as human voices. Careful selection of the highest quality drivers and components also elevates overall quality.

Choose the Model that Meets Your Needs

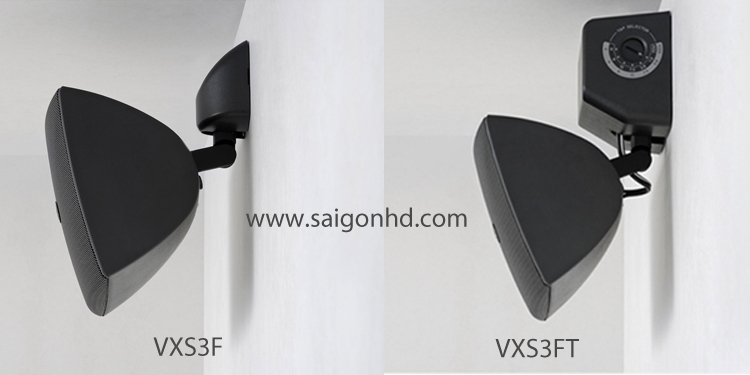

The VXS3F and VXS3FT are designed to deliver the same outstanding performance in different installed settings*. The VXS3F is ideal for smaller installations such as retail stores where just a few speakers will be used to cover the service area. Wide dispersion allows effective coverage with a minimum number of speakers. The VXS3FT is preferred when a large number of speakers will be required to cover an expansive or complex area. Connection taps allow volume (output watts) to be adjusted after installation for added flexibility.

* The VXS3F and VXS3FT feature the same enclosure, but are supplied with different mounting brackets.

Designer's Comments

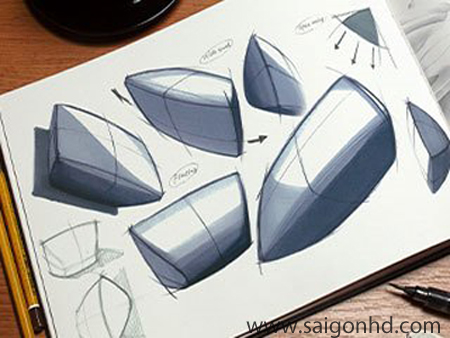

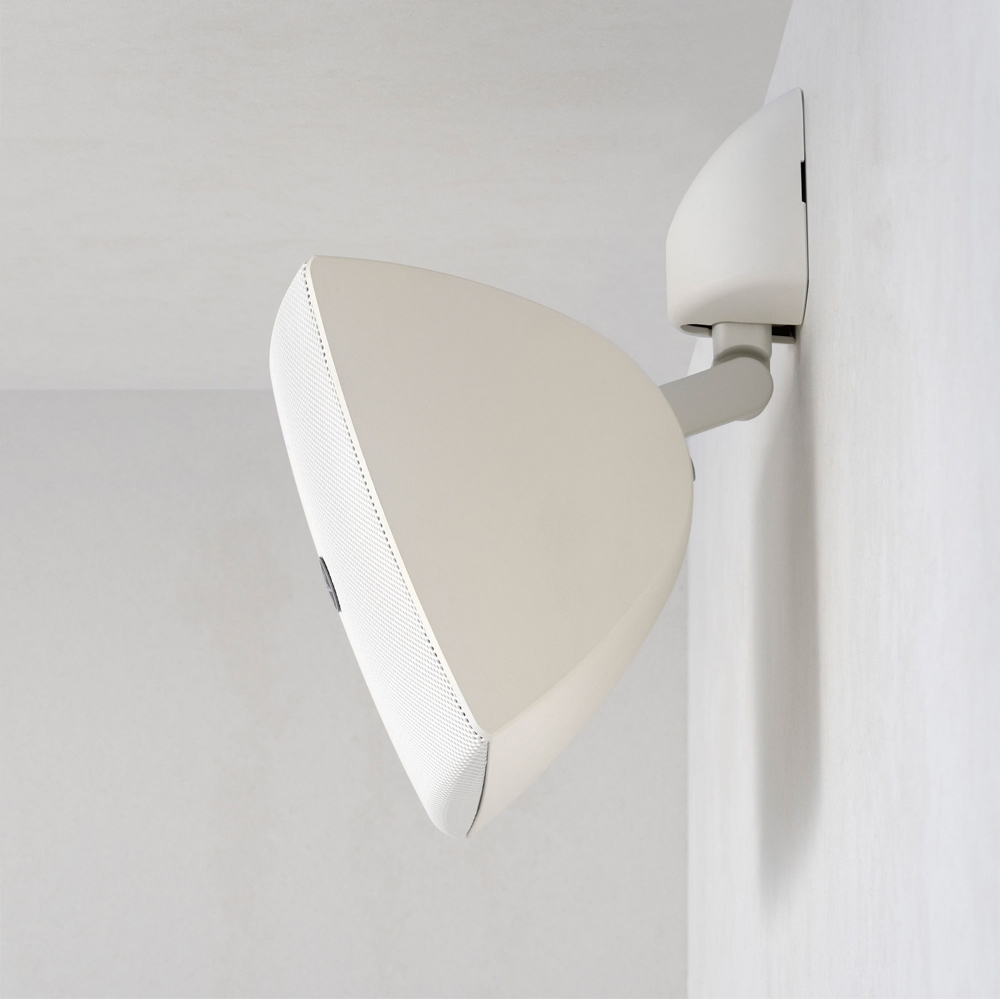

The compact VXS3F and VXS3FT feature an elegantly sculpted exterior design that visually expresses the outstanding quality and clarity of their sound. Gracefully flowing curves from rear to front represent the directness of the sound, while the triangular cross section makes optimum use of the space between walls and ceiling for seamless, efficient installation. With a design that creates the illusion of floating gently in space rather than appearing as a mechanical “unit” attached to a surface as an afterthought, these speakers are ideal for owners and proprietors who want to provide the highest sound quality without disrupting their interior décor.- Takenori OMACHI, Yamaha Design Laboratory.

Specifications of YAMAHA VXS3F

• Speaker type: Full-range, Acoustic suspension
• Frequency range (-10dB): 130Hz -20kHz
• Nominal coverage
• H: 150°
• V: 160°
• Components
  LF-HF: 3.5" Cone
• Power rating
• NOISE: 20W
• PGM: 40W
• PEAK: 80W
• Nominal impedance: 8Ω
• SPL
• Sensitivity (1W; 1m on axis): 86dB SPL *1
• Peak (Calculated): 105dB SPL
• I/O connectors: 1x Euroblock (4P) (Input: + / -, Loop Thru: + / -)
• Protection circuit
  Load protection:  Full-range power limiting for protecting network and transducers
• Finish: VXS3F: Black (approx. Munsell N3),
• Dimensions (WxHxD): 184mm*2 x 130mm*2,*3 x 134 mm*2 (7.3"*2 x 5.1"*2 x 5.3"*2,*3)
• Net weight: 1.1kg (2.4lbs)*4
• Accessories: Bracket Gear, Bracket Base, Bracket Cover, Safety Wire
• Packaging: Packaged in pairs
• Certificate: UL1480, NFPA70, CE, RoHS

*1: Full-space(4π) , 200Hz to 10kHz pink noise
*2: In horizontal cabinet setup
*3: with bracket (in 0° setup)
*4: with bracket
