Loa SoundBar YAMAHA YSP 2700

Designed for exceptional sound quality to being out the best of beautiful images. Compatible with MusicCast, it offers a new music style. The YSP-2700 will bring satisfying sound with superior presence into your living room.

• Digital Sound Projector technology with 16 array speakers reproduces true 7.1-ch surround sound
• MusicCast for audio enjoyment in every room
• Wireless cubic subwoofer for rich and crisp bass
• IntelliBeam™ automatically sets the optimum sound field for each room
• Provides a choice of 10 CINEMA DSP programmes
• HD Audio Format Decoding (Dolby TrueHD®, DTS-HD®)
• Supports 192 kHz / 24-bit High Resolution Music (Flac / WAV / AIFF)
• HDMI (3 in / 1 out) input with 4K60p Pass through and HDCP2.2
• Bluetooth® for wireless music streaming
• Supports Bluetooth output for pairing YSP-2700 and other Bluetooth equipped products
• AirPlay® allows music streaming from Mac, PC, iPod®, iPhone®, iPad®
• Support for internet radio and various music streaming services
• Control app for easy operations (MusicCast CONTROLLER)
• Compressed Music Enhancer
• Clear Voice makes dialogue and narrations easy to listen to
• Easy-to-see On Screen Menu viewable in ten languages
• (Japanese, English, Germany, French, Italian, Spanish, Dutch, Swedish, Russian, Turkey)
• Control4 certification
• Wall-mountable with SPM-K20 (optional)

YAMAHA YSP 2700 FEATUERS

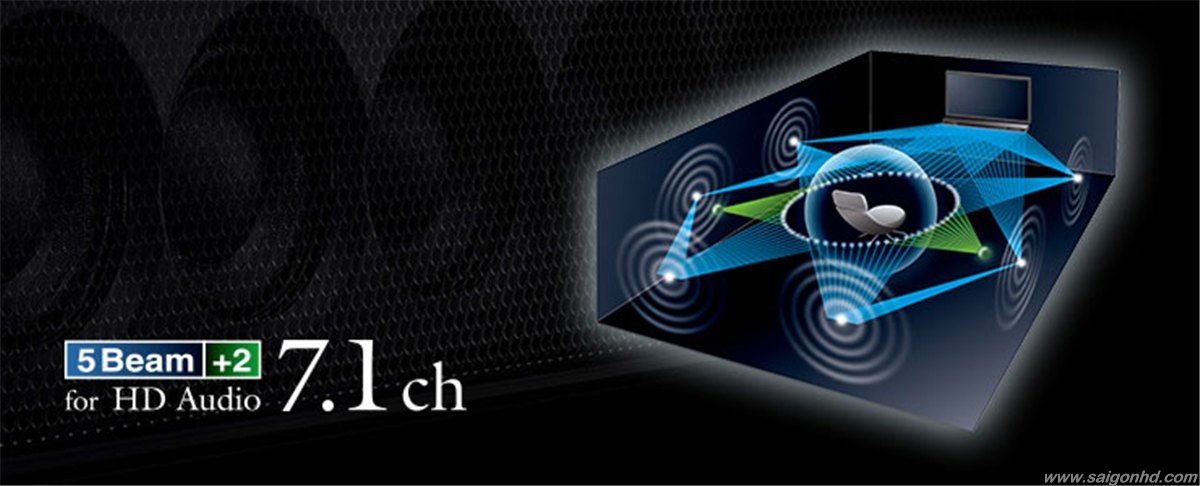

Amazing Real 7.1-ch Surround Sound by Digital Surround Projector Technology

YSP-2700 creates beams of sound by combining the sound projector’s many speaker groups via digital signal processing and reflects them off the walls of the room, actually reproducing a realistic 7.1channel surround effect with the sound coming from the left and right and even from the rear. The listening area is expanded so you enjoy an extremely powerful, natural sense of presence unobtainable with virtual surround methods.

For more details, please visit special site.

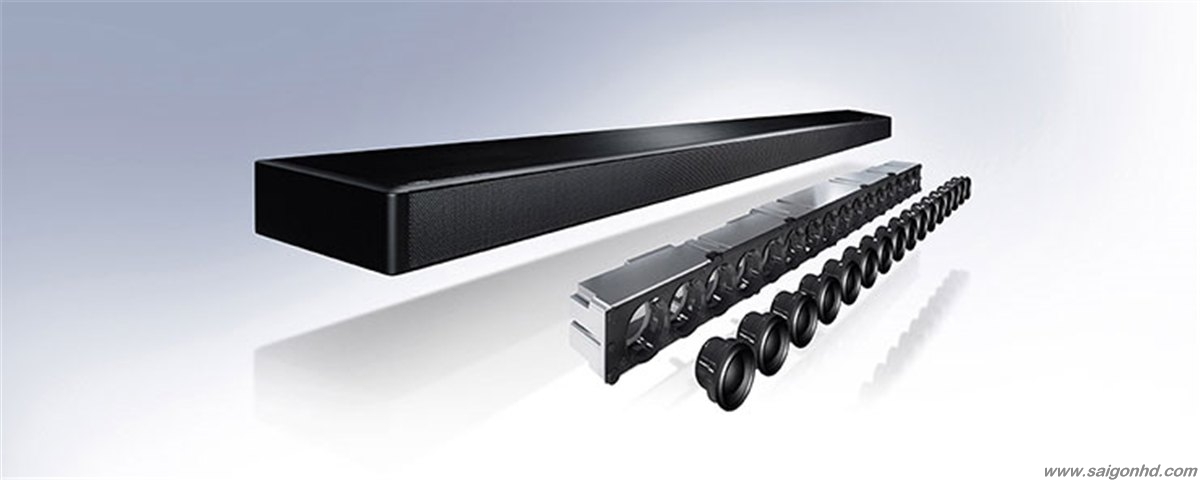

Overwhelming Realism with 16 speakers

The front unit of the YSP-2700 is equipped with 16 2.8 cm high sound quality array speakers which create beams of sound. It optimises the layout of its array speakers, boosting the reflection properties of the beams to maximise sound quality.

The Beauty and Elegance of High Quality Materials

The centre unit is made from aluminium with outstanding rigidity.

The top cover is a thick aluminium panel with a hairline finish, giving it an elegant appearance. The subwoofer has a simple design that blends nicely with any interior.

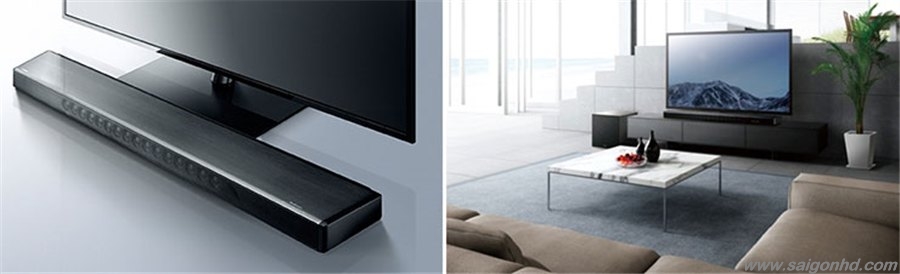

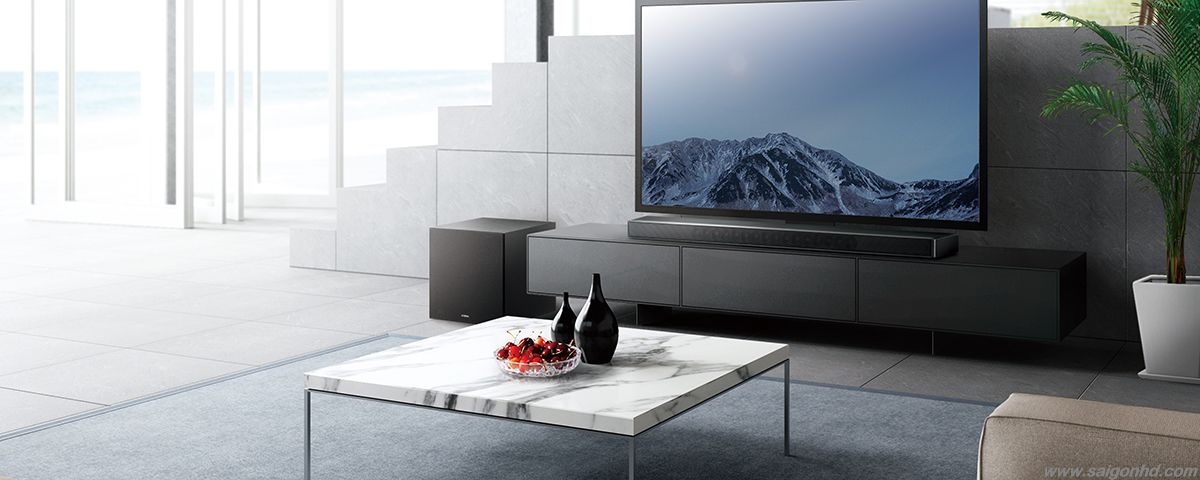

Sleek, Sophisticated Appearance

With a height of only 51 mm, the slim-design centre unit can be placed in front of a TV without blocking the picture.The high-class minimalist design and aluminium chassis will definitely add a sophisticated appearance to your interior decor.

Wireless Subwoofer for Flexible Placement

The subwoofer eliminates the need to connect cables, so setup and placement are faster and easier.

This is a convenient subwoofer that delivers powerful, high quality bass sound.

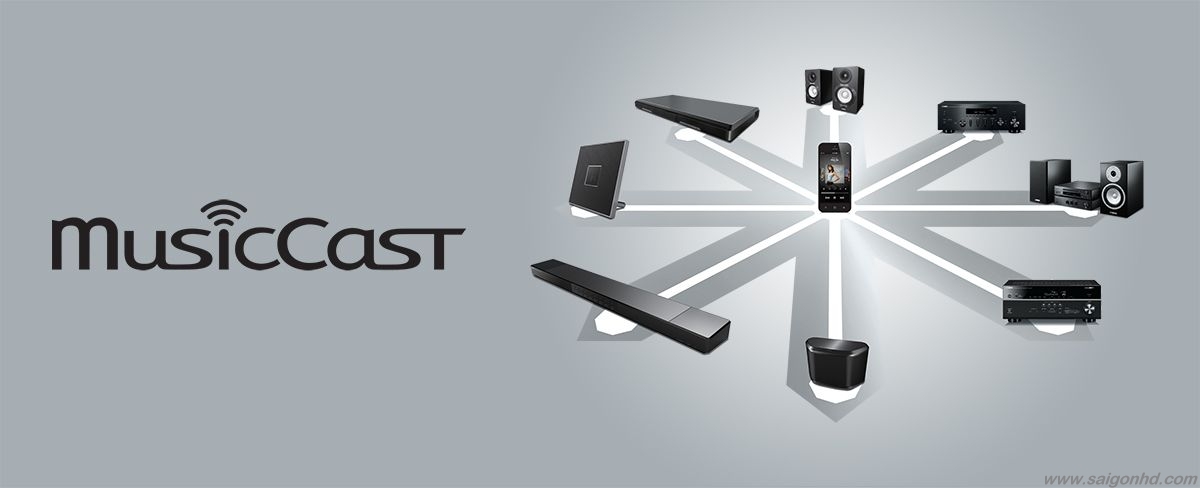

MusicCast

MusicCast is a new revolution in network audio, use all your MusicCast products together or separately, it’s completely up to you. Control it, all from one app, designed to be intuitive, quick and simple to use. Use a soundbar, a wireless speaker, an AV Receiver, Hi-Fi audio whichever suits you best, mix and match then expand your MusicCast system as time goes on. All new from Yamaha, the MusicCast system brings everything to everywhere for everyone.

For more details, please visit MusicCast special page.

Enjoy All Your Music Sources

MusicCast employs a high performance wireless network to deliver music and audio enjoyment. It can stream digital music content from your smartphone, PC or NAS to other MusicCast devices in your home. It can also share the music from external devices such as a TV or BD player connected to the YSP-2700. Audio content from Bluetooth-connected smartphones or tablets can also be streamed to MusicCast devices in multiple rooms.

Control App for Easy Operations

The MusicCast Controller app can be used with a single MusicCast product or with multiple MusicCast products. The app features a beautifully designed display, which you can customise to your taste. Operation requires simply tapping the display, making it extremely easy to enjoy the music you want to hear. In addition, by using the YSP-2700 Beam setting or surround adjustments, you can perform detailed sound adjustment.

This app puts control of your home listening experience in the palm of your hand. It can be downloaded for free from the App Store or Google Play.

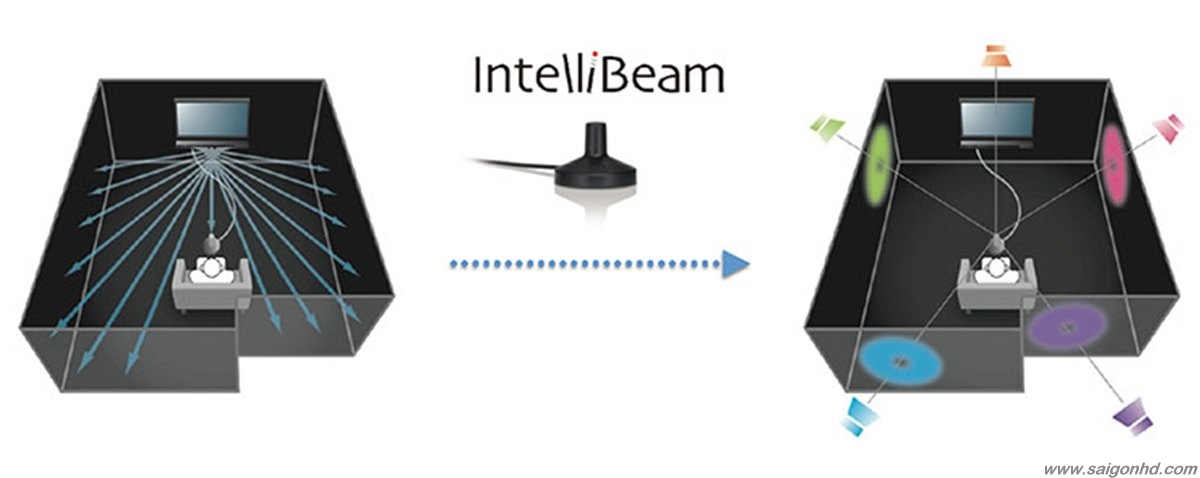

Professional-Grade Acoustic Calibration

Yamaha’s IntelliBeam™ room acoustics calibration system automatically set the perfect listening environment. All the user has to do is push a few buttons while following the on-screen instructions. The system measures the room's acoustic properties such as size, shape and wall material, then adjusts the beam angles, focal lengths, volume and other audio parameters. The result is precise sound optimisation matched to the listening position, for any size and shape room.

Reproducing the Ambience of a Concert Hall, Live House and Theatre in Your Living Room

YAMAHA CINEMA DSP programmes are based on actual sound field data, measured in famous concert halls, jazz clubs, live performance venues and theatres. The result is an amazingly spacious and realistic sound field experience for enjoying music and viewing movies in your living room. The YSP-2700 features 10 different sound programmes for selection.

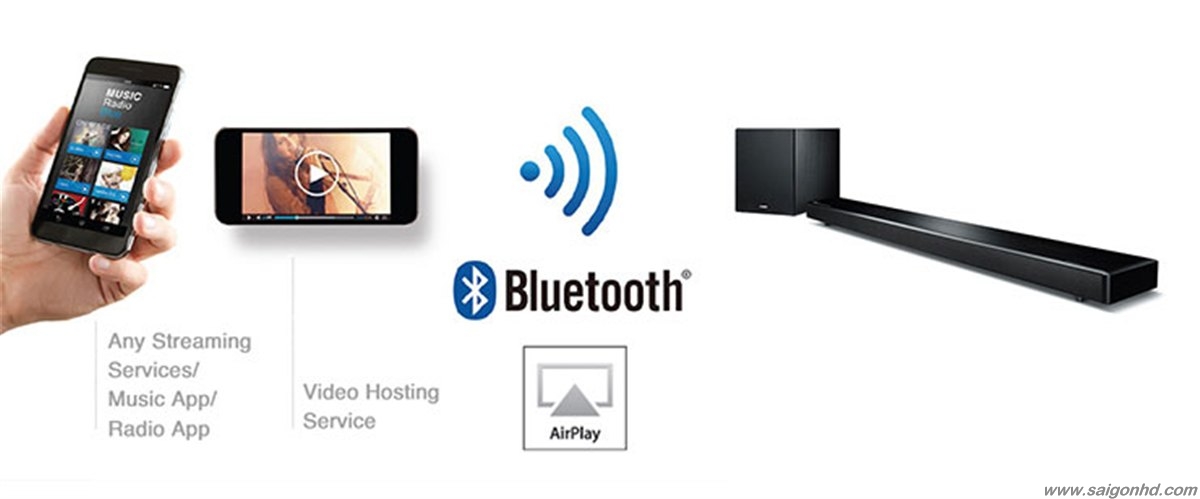

Stream via Bluetooth® or AirPlay®

You can hear all the music sources from your smartphone via wireless Bluetooth® or AirPlay® connection.

You can play music from music apps, radio apps, or YouTube™-type video hosting services.

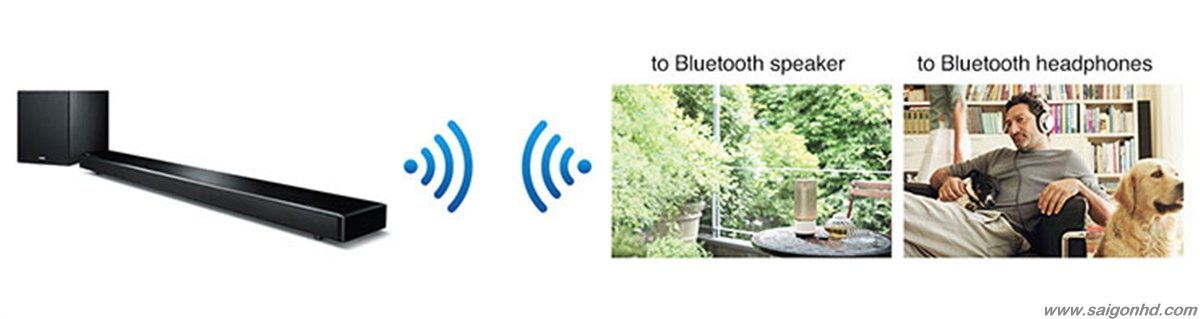

Bluetooth Output for Convenient Music Streaming

The YSP-2700 is equipped with the latest Bluetooth technology, making wireless operation more convenient than ever. You can stream music from the YSP-2700 to Bluetooth headphones for private listening or to Bluetooth speakers.

Compressed Music Enhancer

The Compressed Music Enhancer restores frequency response lost during digital compression, so your music sounds the way it should.

It is optimised for any compressed content, for vivid, lively sound quality during wireless playback. The function can be switched on and off via the remote control, according to the input source.

HD Audio Decoding

The YSP-2700 decodes HD Audio signals to ensure that you hear the best possible sound from Blu-ray Disc players, as well as from other digital sources.

HDMI® Terminals with 4K Ultra HD Support

The YSP-2700 has three HDMI® input terminals and one HDMI output terminal, and supports 4K/60p video signal pass-through.

It’s also compatible with HDCP2.2 digital copy protection.

This gives it extensive expandability, so you’ll be able to use it far into the future.

Yamaha Eco-Product

With an advanced energy saving design, this product achieves a low power consumption of not more than two watts when in Network Standby mode.

Specifications of YAMAHA YSP 2700

• Output Channel : 7.1-channel
• Output Power : 107 W total power: 2 W x 16 beam drivers + 75 W subwoofer
• Power Consumption : (Centre Unit) 24 W, (Subwoofer) 75 W
• Standby Power Consumption : (Centre Unit) 0.3 W (HDMI Control, LAN, Wi-Fi, Bluetooth Off), 2.3 W (HDMI control, Bluetooth on, LAN, Wi-Fi off) ; (Subwoofer) 1.5 W (Wireless Subwoofer MODE)
• Beam Drivers : 2.8 cm (1-1/8") x 16 beam drivers
• Subwoofer : 14 cm (5-1/2") cone woofer
• Dimensions (W x H x D) : (Centre Unit) 944 x 51 x 154 mm ; 37-1/8” x 2” x 6” (*without stand and antenna) , (Subwoofer) 295 x 297 x 307 mm ; 11-5/8” x 11-3/4” x 12-1/8”
• Weight : (Centre Unit) 4.0kg; 8.7 lbs., (Subwoofer) 9.1 kg; 20 lbs.
• HDMI : 3 in / 1 out
• Digital Optical : 1 in
• Digital Coaxial : 1 in
• Analog Audio : 1 in
• Subwoofer output : Yes
• 4K Pass-through : Yes (50 / 60 Hz YCbCr=4:4:4, HDR, HDCP2.2)
• 3D Pass-through : Yes
• ARC : Yes
• CEC : Yes
• Auto Lip-Sync : Yes
• Surround Technology : Digital Sound Projector
• CINEMA DSP Movie : 3 (Sci-Fi, Adventure, Spectacle)
• CINEMA DSP Music : 3 (Music Video, Concert, Jazz Club)
• CINEMA DSP Entertainment : 4 (Sports, Talk Show, Drama, Game)
• Listening Mode : SURROUND, STEREO, TARGET, My Surround, System memory
• Compressed Music Enhancer : Yes
• Dolby TrueHD : Yes
• Dolby Digital Plus : Yes
• Dolby Digital : Yes
• Dolby Digital EX : Yes
• Dolby Pro Logic II : Yes
• Dolby Pro Logic IIx : Yes
• DTS-HD Master Audio : Yes
• DTS-HD High Resolution : Yes
• DTS : Yes
• DTS-Neo 6 : Yes
• DTS-ES : Yes
• DTS 96/24 : Yes
• File Format : MP3, WMA, MPEG4 AAC, Apple LossLess(*1), WAV(*2), FLAC(*2), AIFF(*2) --- (*1) up to 96 kHz (*2) up to 192 kHz
• Wireless Music Streaming : Yes
• Wi-Fi : Yes
• AirPlay : Yes
• Bluetooth Version/Profile : (Version) Ver. 2.1 + EDR / A2DP, AVRCP; (Codec) SBC, AAC
• Bluetooth Maximum Communication Range : 10 m ; 33 ft (*without obstructions)
• Ethernet : Yes
• IntelliBeam : Yes
• On-Screen Display : Yes
• On-Screen Display Languages : English, German, French, Spanish, Italian, Dutch, Russian, Swedish, Turkish, Japanese
• ECO Mode : Yes
• App Control : Yes
• Wall Mounting Bracket : SPM-K20
