ĐÈN HIỆU ỨNG MARTIN RUSH WIZARD

Màu sắc:

Đen

  • Chia sẻ:
  • 717

Giá bán:

21.011.000 VNĐ

Miễn phí cà thẻ

Miễn phí giao hàng, lắp đặt trong nội thành

MUA HÀNG NGAY

HƯỚNG DẪN MUA HÀNG

BÁO GIÁ CAO

Tư vấn - Mua hàng

0933.252.606

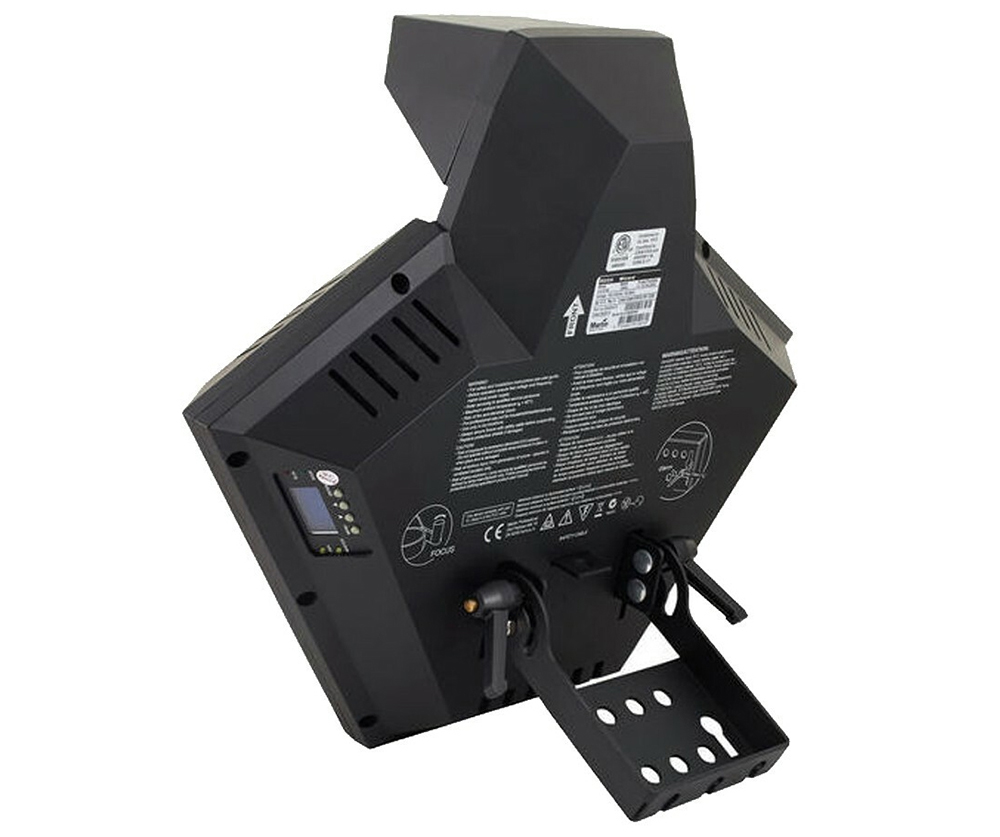

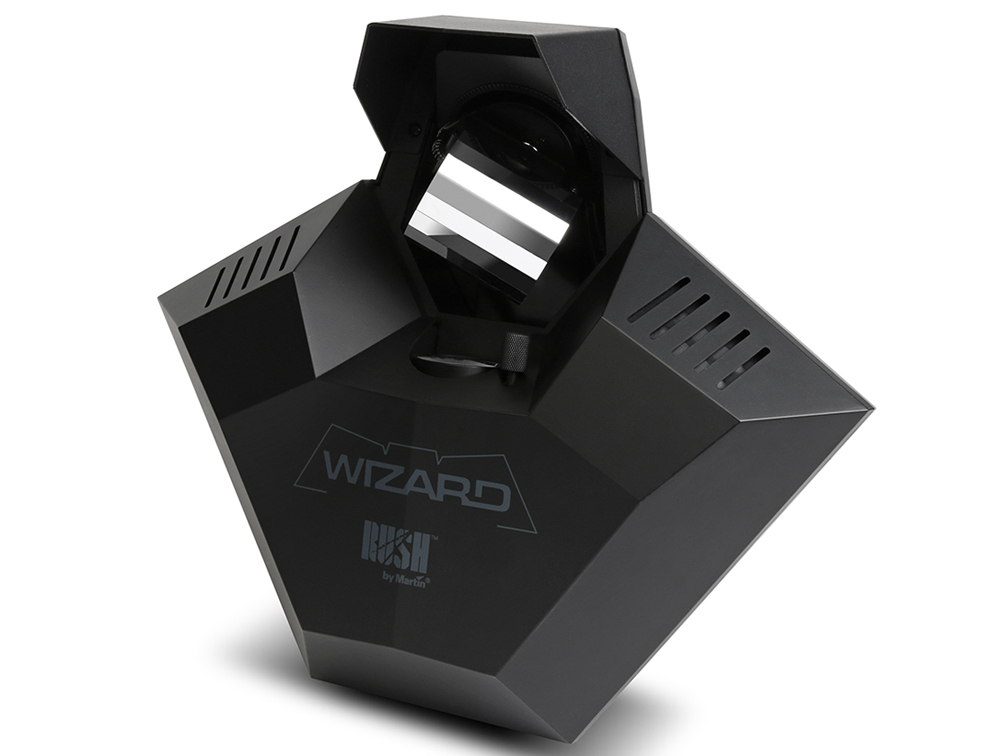

MARTIN RUSH WIZARD - Đèn gobo nhỏ gọn, giá tốt

The RUSH Wizard is the iconic Martin Wizard Extreme re-energized: lighter, brighter, more compact and even more energy-efficient. This music triggered and DMX-Controllable “full-house” effect light, features extraordinary bright and magical effects. It features a color wheel with seven colors and a gobo wheel with 15 unique designs, as well as a shutter for strobe and pulse effects. The Wizard delivers more than 80 agile light beams, each beam chasing the other while continuously changing color and gobo patterns.

  • More than 80 magical beams
  • 15 gobos and 7 colors for a large variety of dance floor looks
  • Unique twinkle animation effect

MARTIN RUSH WIZARD Feature

  • 130 W short-arc discharge lamp with reflector
  • 15 gobos plus open
  • More than 80 magical light beams
  • 7 colors + 2 open
  • Shutter: Strobe effect, pulse effects, instant open and blackout
  • Adjustable focus
  • DMX or stand-alone mode
  • Flexible mounting bracket for floor stand, wall or overhead mounting

Specifications of MARTIN RUSH WIZARD

PHYSICAL

  • Length: 447 mm (17.6 in.)
  • Width: 500 mm (19.7 in.)
  • Height: 195 mm (7.7 in.)
  • Weight: 9.3 kg (20.5 lbs.) including bracket

DYNAMIC EFFECTS

  • Motorized rotating parabolic mirror dish
  • Motorized mirror drum: 180° pan (swivel) and 360° tilt (continuous rotation)
  • Color / animation wheel: 7 colors plus 2 x open, twinkle animation effect
  • Gobo wheel: 13 gobos + open, wheel scrolling and continuous rotation, shake effect
  • Shutter: 0 - 100% continuous dimming, variable & random strobe & pulse effects, instant open & blackout
  • Pre-programmed effects: Full range of macro effects

CONTROL AND PROGRAMMING

  • Control options: DMX, stand-alone, host/client
  • DMX channels: 10
  • Stand-alone trigger options: Music trig, auto trig
  • Music trig also settable via DMX
  • Setting and addressing: Control panel with backlit LCD display
  • Protocol: USITT DMX512/1990
  • Firmware update: Serial upload via DMX link

LAMP

  • Type: 130 W short-arc discharge with reflector
  • Color temperature: 8800 K
  • Average lifetime: 6000 hours*

*Manufacturer's figure

OPTICS

  • Manual focus: 2 m - 20 m (6 ft. 7 in. - 65 ft. 8 in.)

CONSTRUCTION

  • Housing: High-impact flame-retardant thermoplastic
  • Color(s): Black
  • Protection rating: IP20

INSTALLATION

  • Mounting points: Adjustable bracket
  • Orientation: Any
  • Location: Indoor use only, must be fastened to surface or structure
  • Minimum distance to illuminated surfaces: 0.5 m (19.7 in.)
  • Minimum distance to combustible materials: 0.3 m (11.9 in.)
  • Minimum clearance around fan and air vents: 0.3 m (11.9 in.)

CONNECTIONS

  • AC power in/thru: Neutrik PowerCon
  • DMX data in/out: 5-pin locking XLR

ELECTRICAL

  • AC power: 100-240 V nominal, 50/60 Hz
  • Typical total power consumption: 200 W
  • Power consumption figures are typical, not maximum. Allow for +/-10% variation.

TYPICAL POWER AND CURRENT

  • 110 V, 60 Hz: 1.9 A, 200 W, PF 0.99
  • 230 V, 50 Hz: 0.9 A, 196 W, PF 0.95
  • Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.

APPROVALS

  • EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
  • EU EMC: EN 55015, EN 55103-1, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547
  • US safety: UL 1573
  • US EMC: 47 CFR Part 15 Class A
  • Canadian safety: CSA C22.2 No. 166
  • Canadian EMC: ICES-003 Class A
  • Australia/NZ: C-TICK N4241

INCLUDED ITEMS

  • Lamp (installed)
  • Mounting bracket
  • Power cable, 1.5 m, without mains plug

ACCESSORIES

  • Cables, 16 A, for connection to power in chains
    • Power input cable, 14 AWG, UL, SJT, 1.5 mm2, H05VV-F, with PowerCon input connector, 3 m (9.9 ft.): P/N 11541508
    • Power relay cable, 14 AWG, UL, SJT, 1.5 mm2, H05VV-F, with PowerCon input connector, 1.4 m (4.6 ft.): P/N 11541509
    • Power relay cable, 14 AWG, UL, SJT, 1.5 mm2, H05VV-F, with PowerCon input connector, 2.25 m (7.4 ft.): P/N 11541510
    • Power relay cable, 14 AWG, UL, SJT, 1.5 mm2, H05VV-F, with PowerCon input connector, 3.25 m (10.7 ft.): P/N 11541511
  • Power connectors
    • Neutrik PowerCon NAC3FCA power input connector, cable mount, blue: P/N 05342804
    • Neutrik PowerCon NAC3FCB power output connector, cable mount, light grey:P/N 05342805
  • DMX link
    • DMX termination plug, 3-pin male XLR: P/N 91613017
  • Installation hardware
    • G-clamp: P/N 91602003
    • Half-coupler clamp: P/N 91602005

RELATED ITEMS

  • RUSH™ Software Uploader 1: P/N 91611399

PHYSICAL

  • Length: 447 mm (17.6 in.)
  • Width: 500 mm (19.7 in.)
  • Height: 195 mm (7.7 in.)
  • Weight: 9.3 kg (20.5 lbs.) including bracket

DYNAMIC EFFECTS

  • Motorized rotating parabolic mirror dish
  • Motorized mirror drum: 180° pan (swivel) and 360° tilt (continuous rotation)
  • Color / animation wheel: 7 colors plus 2 x open, twinkle animation effect
  • Gobo wheel: 13 gobos + open, wheel scrolling and continuous rotation, shake effect
  • Shutter: 0 - 100% continuous dimming, variable & random strobe & pulse effects, instant open & blackout
  • Pre-programmed effects: Full range of macro effects

CONTROL AND PROGRAMMING

  • Control options: DMX, stand-alone, host/client
  • DMX channels: 10
  • Stand-alone trigger options: Music trig, auto trig
  • Music trig also settable via DMX
  • Setting and addressing: Control panel with backlit LCD display
  • Protocol: USITT DMX512/1990
  • Firmware update: Serial upload via DMX link

LAMP

  • Type: 130 W short-arc discharge with reflector
  • Color temperature: 8800 K
  • Average lifetime: 6000 hours*

*Manufacturer's figure

OPTICS

  • Manual focus: 2 m - 20 m (6 ft. 7 in. - 65 ft. 8 in.)

CONSTRUCTION

  • Housing: High-impact flame-retardant thermoplastic
  • Color(s): Black
  • Protection rating: IP20

INSTALLATION

  • Mounting points: Adjustable bracket
  • Orientation: Any
  • Location: Indoor use only, must be fastened to surface or structure
  • Minimum distance to illuminated surfaces: 0.5 m (19.7 in.)
  • Minimum distance to combustible materials: 0.3 m (11.9 in.)
  • Minimum clearance around fan and air vents: 0.3 m (11.9 in.)

CONNECTIONS

  • AC power in/thru: Neutrik PowerCon
  • DMX data in/out: 5-pin locking XLR

ELECTRICAL

  • AC power: 100-240 V nominal, 50/60 Hz
  • Typical total power consumption: 200 W
  • Power consumption figures are typical, not maximum. Allow for +/-10% variation.

TYPICAL POWER AND CURRENT

  • 110 V, 60 Hz: 1.9 A, 200 W, PF 0.99
  • 230 V, 50 Hz: 0.9 A, 196 W, PF 0.95
  • Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.

APPROVALS

  • EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
  • EU EMC: EN 55015, EN 55103-1, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547
  • US safety: UL 1573
  • US EMC: 47 CFR Part 15 Class A
  • Canadian safety: CSA C22.2 No. 166
  • Canadian EMC: ICES-003 Class A
  • Australia/NZ: C-TICK N4241

INCLUDED ITEMS

  • Lamp (installed)
  • Mounting bracket
  • Power cable, 1.5 m, without mains plug

ACCESSORIES

  • Cables, 16 A, for connection to power in chains
    • Power input cable, 14 AWG, UL, SJT, 1.5 mm2, H05VV-F, with PowerCon input connector, 3 m (9.9 ft.): P/N 11541508
    • Power relay cable, 14 AWG, UL, SJT, 1.5 mm2, H05VV-F, with PowerCon input connector, 1.4 m (4.6 ft.): P/N 11541509
    • Power relay cable, 14 AWG, UL, SJT, 1.5 mm2, H05VV-F, with PowerCon input connector, 2.25 m (7.4 ft.): P/N 11541510
    • Power relay cable, 14 AWG, UL, SJT, 1.5 mm2, H05VV-F, with PowerCon input connector, 3.25 m (10.7 ft.): P/N 11541511
  • Power connectors
    • Neutrik PowerCon NAC3FCA power input connector, cable mount, blue: P/N 05342804
    • Neutrik PowerCon NAC3FCB power output connector, cable mount, light grey:P/N 05342805
  • DMX link
    • DMX termination plug, 3-pin male XLR: P/N 91613017
  • Installation hardware
    • G-clamp: P/N 91602003
    • Half-coupler clamp: P/N 91602005

RELATED ITEMS

  • RUSH™ Software Uploader 1: P/N 91611399
